Hydraulic Double Acting Plough Overturning Valve 3/8"x12L With Alignment, VRAP 80/100 SS
V0330
Hydraulic Double Acting Plough Overturning Valve With Alignment, VRAP 80/100 SS, Max Exchange Pressure 250 Bar, Max Pressure 400 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Double Acting Plough Overturning Valve 3/8"x12L With Alignment, VRAP 80/100 SS
| CODE | TYPE | MAX EXCHANGE PRESSURE Bar |
MAX PRESSURE Bar |
C2 P-T |
C1 mm |
L mm |
L1 mm |
L2 mm |
L3 mm |
H mm |
S mm |
WEIGHT Kg |
| V0330 | VRAP 80/100 SS | 250 | 400 | G 3/8” | Ø12 | 95 | 58 | 30 | 177.5 | 80 | 35 | 2.23 |
| V0331 | VRAP 100/110 SS VMP | 250 | 400 | G 3/8” | Ø12 | 95 | 58 | 30 | 177.5 | 80 | 35 | 3.18 |
USE AND OPERATION:

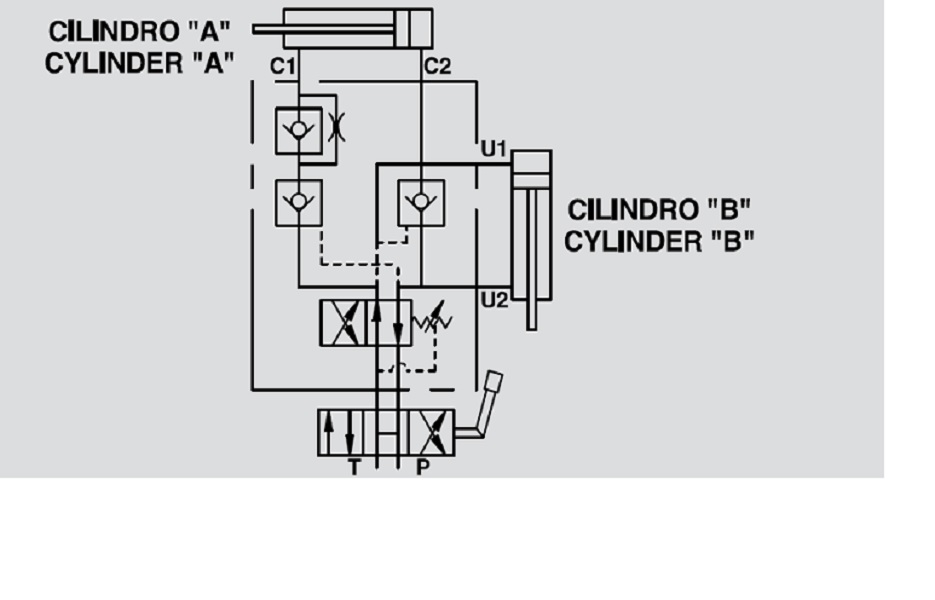

This valve has been designed for use on cylinders for reversible ploughs to obtain the automatic oil flow reversal, and therefore the reversal of the hydraulic cylinder which rotates the plough. It has been designed to control two cylinders on ploughs with the rotation of the frame upwards (see scheme). Operation: the two cylinders work in parallel. Fist cylinder B starts lining up the load (as it requires less pressure). Before the end
of stroke, cylinder A starts the overturning. Once the dead head point (90°) has passed, the cylinders A and B restart together taking the plough back to its working position.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Load holding - guided poppet. Negligible leakage. These valves are supplied with exchange pressure at about 150 Bar: according to your requirements, pressure setting can be modified by adjusting the pressure regulator.
CONNECTIONS:

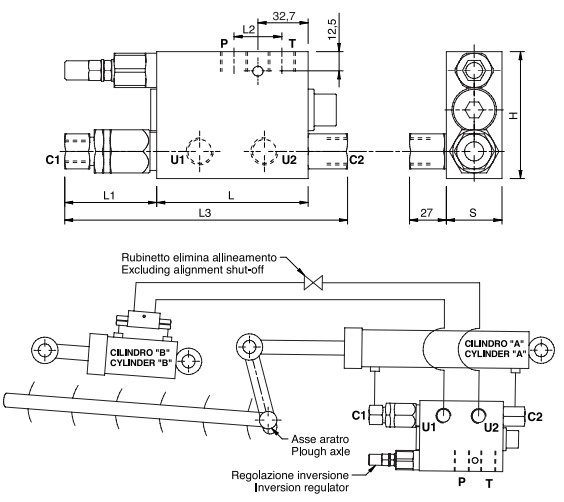

Connect C1 to the rod side, C2 to the head side of the overturning cylinder A, U1 to the head side and U2 to the rod side of the aligning cylinder B. P and T to the machine's supply. Thanks to its shape, it can be assembled in-line on the hydraulic cylinder or directly fixed onto the plough by the threaded hole in the valve body.
