Spherical End Cylinders

Maximize Power and Precision with Double Acting Spherical End Cylinders1000 Series

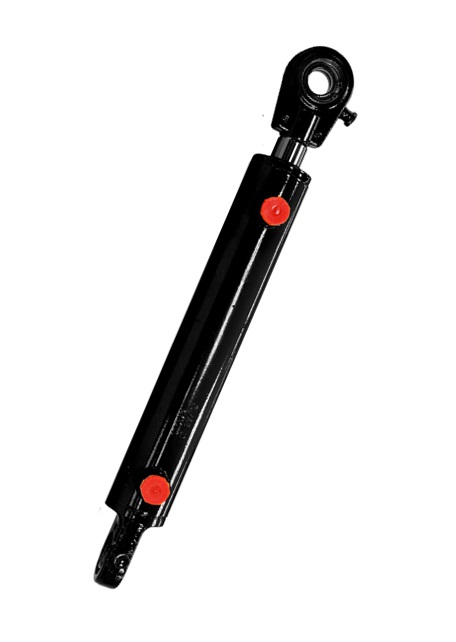

A Hydraulic Double Acting Spherical Cylinder is a specialized cylinder designed for applications requiring movement in multiple directions or angles. Equipped with spherical bearings, it allows for a certain degree of angular flexibility, reducing stress on the cylinder and its mounting points. The double-acting functionality ensures power is applied in both extension and retraction strokes, making it highly efficient for demanding hydraulic tasks.

Key Features:

• Spherical End Mounts: The ends of the cylinder are designed with spherical or ball-shaped fittings, which allow for rotational movement and some angular misalignment.
• Enhanced Flexibility: These cylinders can compensate for misalignments in the mounting surfaces, making them ideal for applications where perfect alignment is difficult to achieve.
• Durable Construction: Built to handle high-pressure environments and heavy-duty applications, they are often used in demanding industrial, agricultural, and construction settings.
• Smooth Operation: The spherical ends help minimize stress and wear on the cylinder’s mounting points, allowing for longer service life and reliable performance.
• Customizable Options: Available in various bore sizes, stroke lengths, and mounting configurations to meet the needs of different applications.

Common Applications:

• Construction Machinery: Used in cranes, excavators, bulldozers, and other heavy equipment where the cylinder needs to operate under varying angles and loads.
• Agricultural Equipment: Found in tractors and other farming machinery that requires flexible, durable cylinders for lifting, pushing, or positioning tasks.
• Industrial Machinery: Used in presses, lifts, and other equipment where precise motion is necessary despite slight misalignments between components.
• Marine and Offshore Equipment: Ideal for environments where alignment may change due to vibrations or the movement of the structure.

Technical Specifications & Downloads

Each product page includes downloadable technical specifications in PDF format for easy reference. Click on the product of your choice and navigate to the download tab.

Order Your Standard Double Acting Cylinders Today!

With over 9,000 satisfied global customers, Flowfit has built a reputation for quality and reliability. We offer UK & Worldwide delivery, ensuring you receive the hydraulic products you need.

For more information, call 01584 876 033 or email sales@flowfitonline.com to speak with our expert team.
