Double Pilot Operated Check Valves

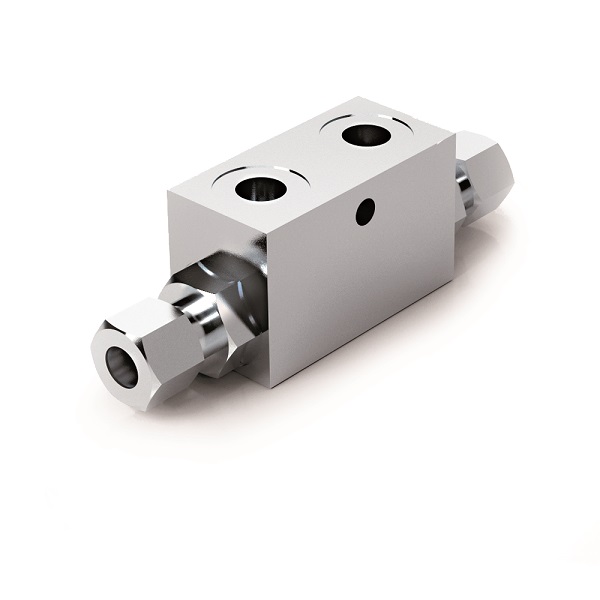

Hydraulic Double Pilot Operated Check Valve 1/4" BSP x10 mm pipe mounting (DIN 2353), VBPDE 1/4" L 2 CEXC-10L

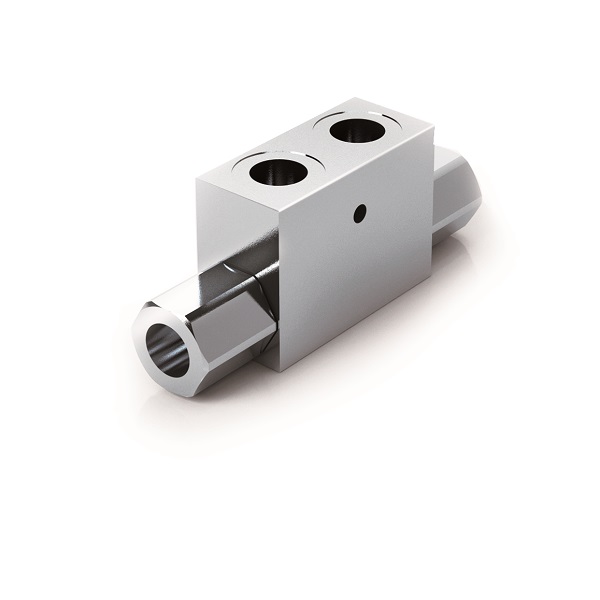

Hydraulic Double Pilot Operated Check Valve 3/8" BSP x 12 mm Pipe Mounting (DIN 2353), VBPDE 3/8" L 2 CC

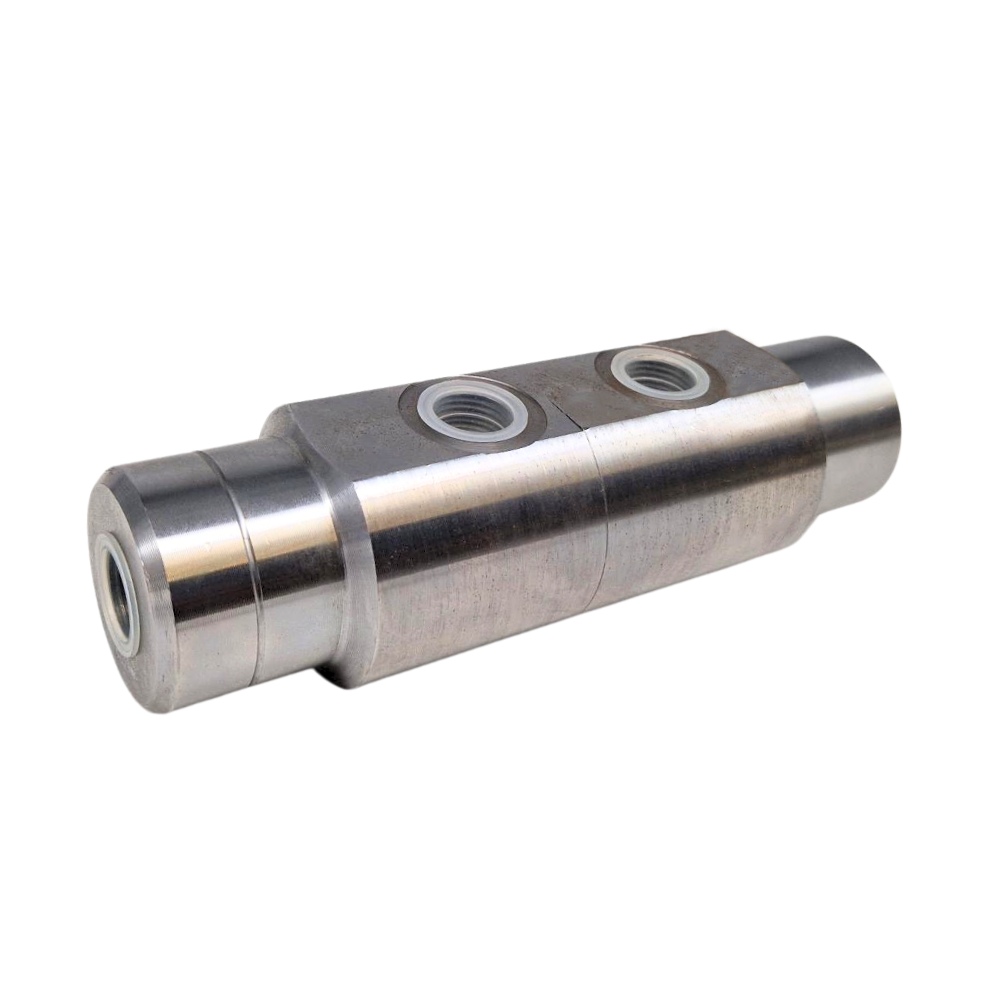

Hydraulic Cylindrical Double Pilot Operated Check Valve, VBPDE 3/8" Cylindrical, Pilot Ratio 1:5

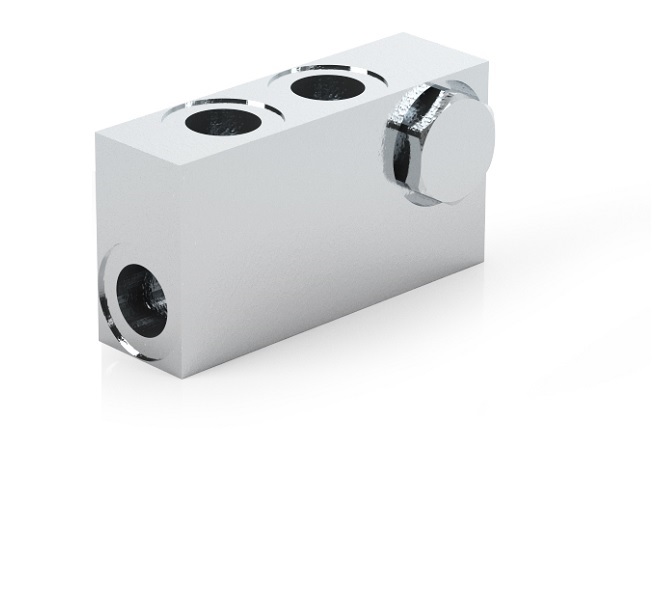

Hydraulic Compact Double Pilot Operated Check Valve, VBPDE 1/4" L CMP/FLV

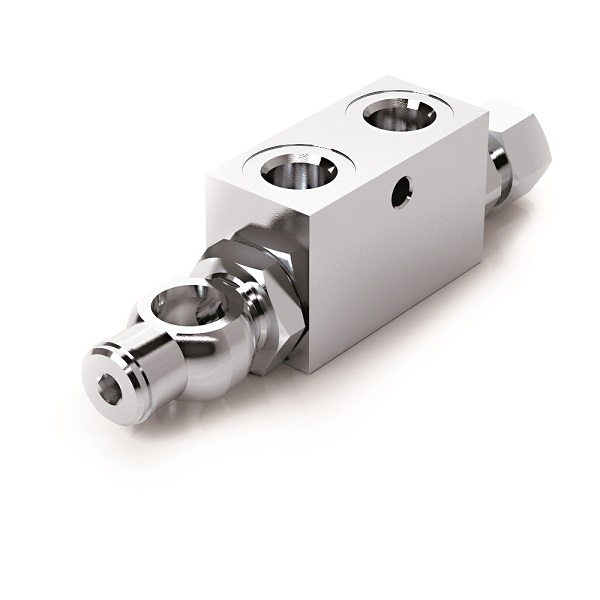

Hydraulic Double Pilot Operated Check Valve 3/8" With Adjustable Banjo Union, VBPDE 3/8" L SC
Double Pilot Operated Check Valves – Precision Control, Secure Flow!
A double pilot-operated check valve (DPOCV) is a hydraulic valve designed to allow flow in both directions while preventing backflow. It uses two pilot pressure signals—one for each direction—to override the check mechanism and enable controlled reverse flow when needed. Flowfit proudly offers a wide selection of double pilot-operated check valves from the esteemed manufacturer Oleodinamica Marchesini.
How It Works:
-
Normal Operation: The valve allows flow in one direction while blocking reverse flow.
-
Pilot Activation: When pilot pressure is applied to either side, the valve opens, allowing controlled reverse flow in that direction.
-
Load Holding: It securely holds a load in place until pilot pressure releases the valve, preventing unwanted movement.
Key Features:
✔ Bidirectional Flow Control – Allows controlled movement in both directions.
✔ Prevents Backflow – Ensures stability by stopping unintended motion.
✔ Load Holding Capability – Ideal for hydraulic cylinders in lifting and mobile applications.
Common Applications:
-
Hydraulic Lifting Systems – Ensures secure load holding and smooth motion.
-
Mobile Equipment – Used in cranes, loaders, and excavators for safe hydraulic control.
-
Hydraulic Presses & Clamps – Maintains position and prevents pressure loss.
Technical Specifications & Downloads
Each product page includes downloadable technical specifications in PDF format for easy reference. Click on the product of your choice and navigate to the download tab.
Order Your Double Pilot Operated Check Valve at Flowfit Today!
With over 9,000 satisfied global customers, Flowfit has built a reputation for quality and reliability. We offer UK & Worldwide delivery, ensuring you receive the hydraulic products you need.
For more information, call 01584 876 033 or email sales@flowfitonline.com to speak with our expert team
