Solenoid Spool Diverter Valves

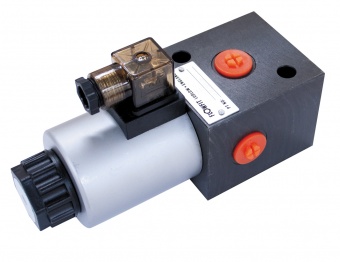

Flowfit 3 Way Hydraulic Solenoid Diverter 3/8" BSP Port Size, 12V DC, 80 L/Min Flows

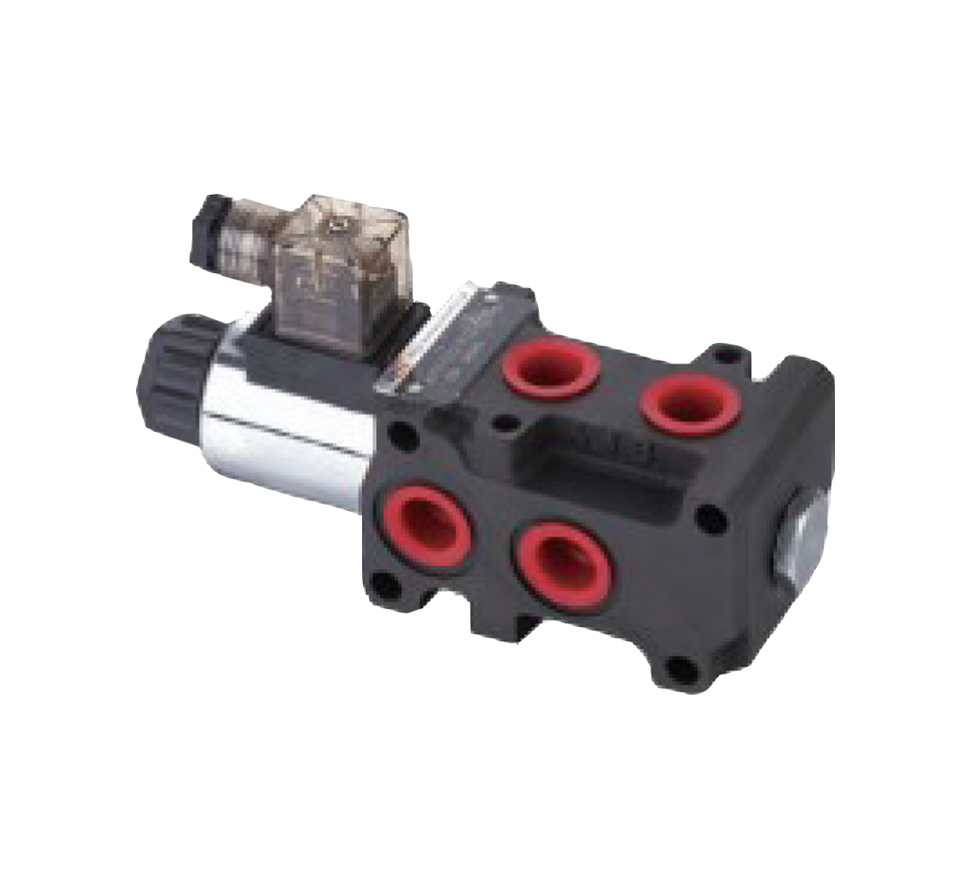

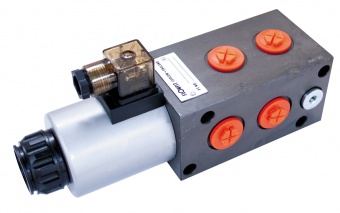

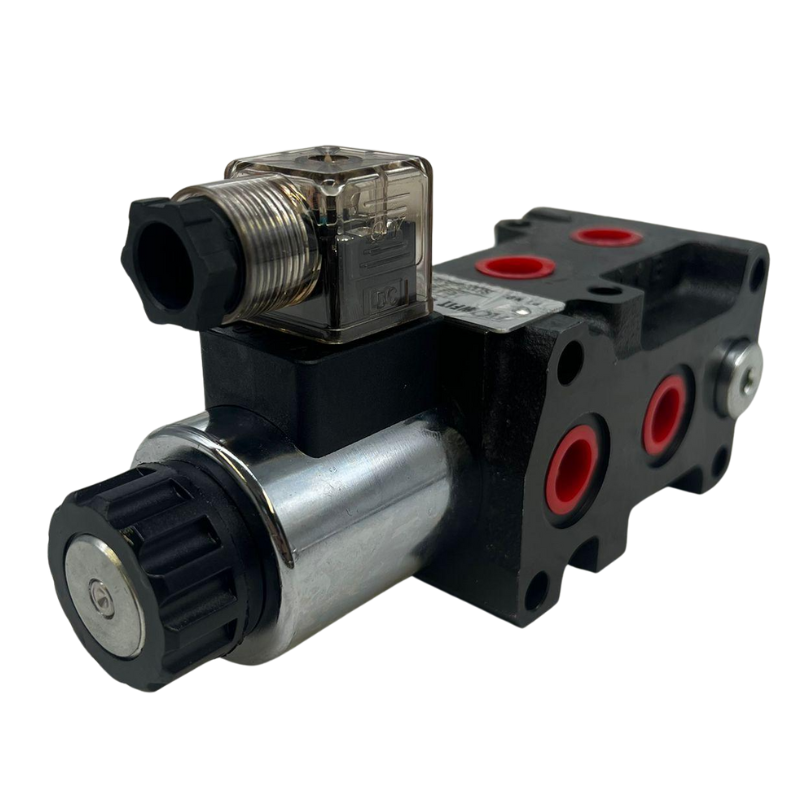

Flowfit 6 Way Hydraulic Solenoid Diverter, 3/8" BSP Port Size, 12V DC, 50 L/Min Flows
Flowfit 6 Way Hydraulic Solenoid Diverter, 3/8" BSP, Internal Drained, 12V DC, 50 L/Min Flows

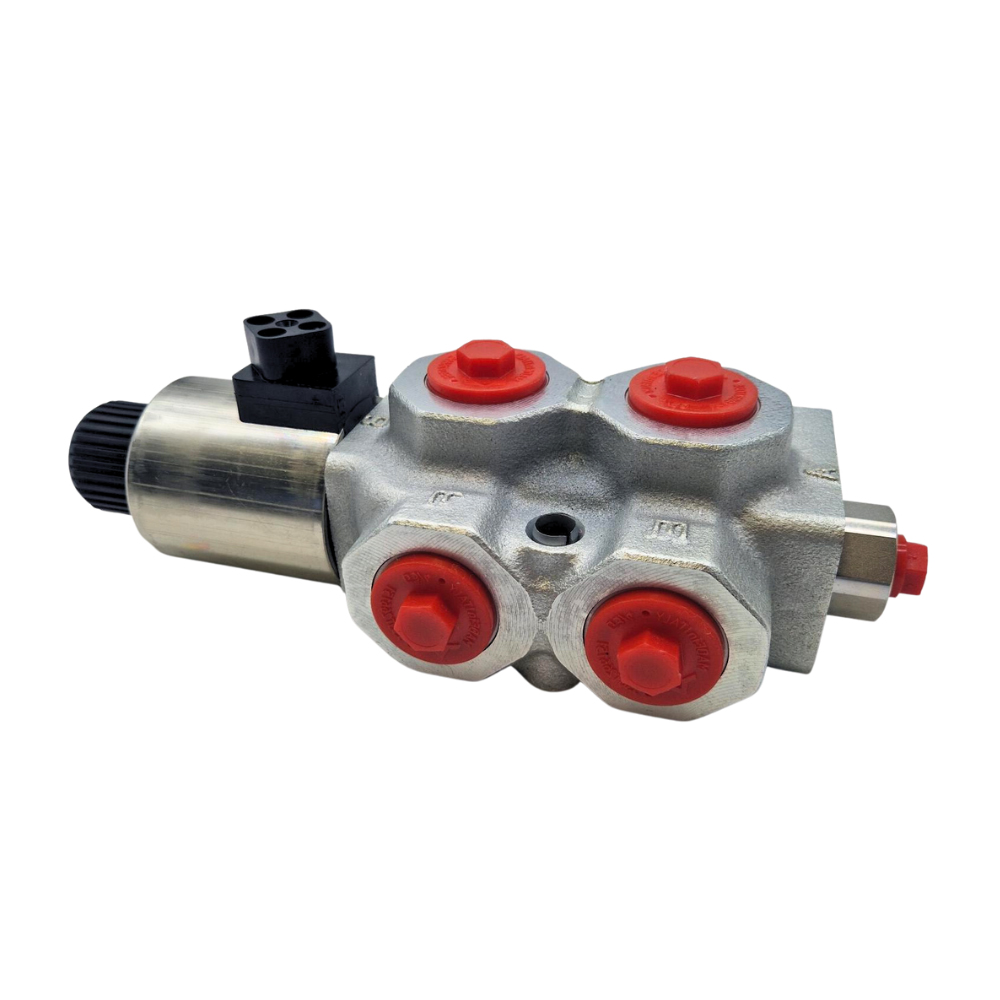

Flowfit 6 Way Solenoid Diverter, 1/2" BSP Port Size, 12V DC, 80 L/Min Flows

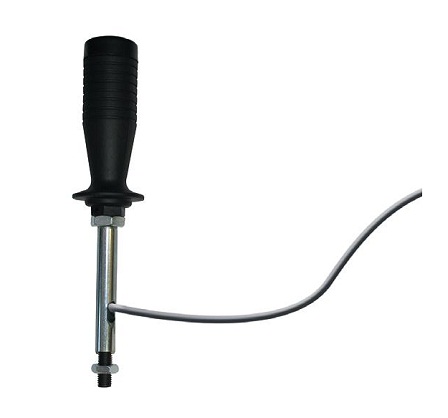

Walvoil push button on/off handlever microswitch for solenoid hydraulic diverters, M10 Thread Type, 250mm Length
Walvoil rocker switch on/off detent 2 position handlever microswitch for solenoid hydraulic diverters, M10 Thread Type, 250mm Length
Solenoid Spool Diverter Valves
Flowfit Solenoid Spool Diverter Valves come in 2 variants: 3
way spool valves and 6 way spool valves.

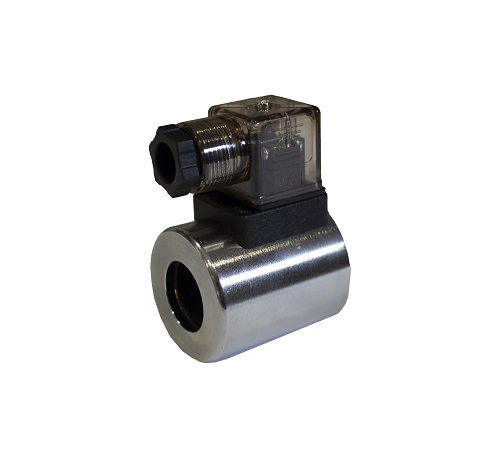

12v solenoid
3 Way
Used to divert flow from one line to another – P to B >> P to A.
3/8” BSP and ½” BSP; rated at 80L/min at 210Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.
6 Way
Used to divert one double acting service to another – P1& P2 to C & D >> P1& P2 to A & B
3/8” BSP and ½” BSP; rated at 50L/min at 250Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.
Internal and ¼” external drain options available.
1/2” BSP and 3/4” BSP; rated at 80L/min at 315Bar, in 12vdc, 24vdc, 110vac & 220vac coil options.
¼” external drain only.
Flowfit: Leading UK Provider of Hydraulic System Components and Accessories
Flowfit is the go-to source for top-of-the-line hydraulic system components and accessories. Our company prides itself on delivering quality products that surpass industry standards. If you're unsure about what you need or can't seem to find a specific product, don't hesitate to give us a call. Our Technical Sales team is well-versed in the latest industry trends and can suggest the best products for your needs. For further details, get in touch with our team of hydraulic specialists today!
