Hydraulic Double Acting Plough Overturning Valve 3/8" With Alignment For In Farrow Ploughs (Patent 2013), VRAP 70/80 SE SV
V0339
Hydraulic Double Acting Plough Overturning Valve With Alignment For In Farrow Ploughs (Patent 2013), VRAP 70/80 SE SV, Max Exchange Pressure 230 Bar, Max Pressure 400 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Double Acting Plough Overturning Valve 3/8" With Alignment For In Farrow Ploughs (Patent 2013), VRAP 70/80 SE SV
USE AND OPERATION:
This valve has been designed for use with two cylinders in sequence for reversible plough to obtain the automatic alignment of load and its overturning. The rotation of the frame is upwards giving the possibility to equip the plough with a wheel for towing. Two different calibrated restrictors have been designed, depending on the diameter of the overturning cylinder, onto which the valves are fitted. Operating instructions: first the allignment cylinder starts lining up the load. Once it reaches the end of stroke, the overturning cylinder starts the rotation. Upon the completion of this the alignment cylinder takes the plough back into its working position.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Load holding - guided poppet. Negligible leakage. These valves are supplied with exchange pressure at 150 bar: according to your requirements, pressure setting can be modified by adjusting the pressure regulator.
CONNECTIONS:

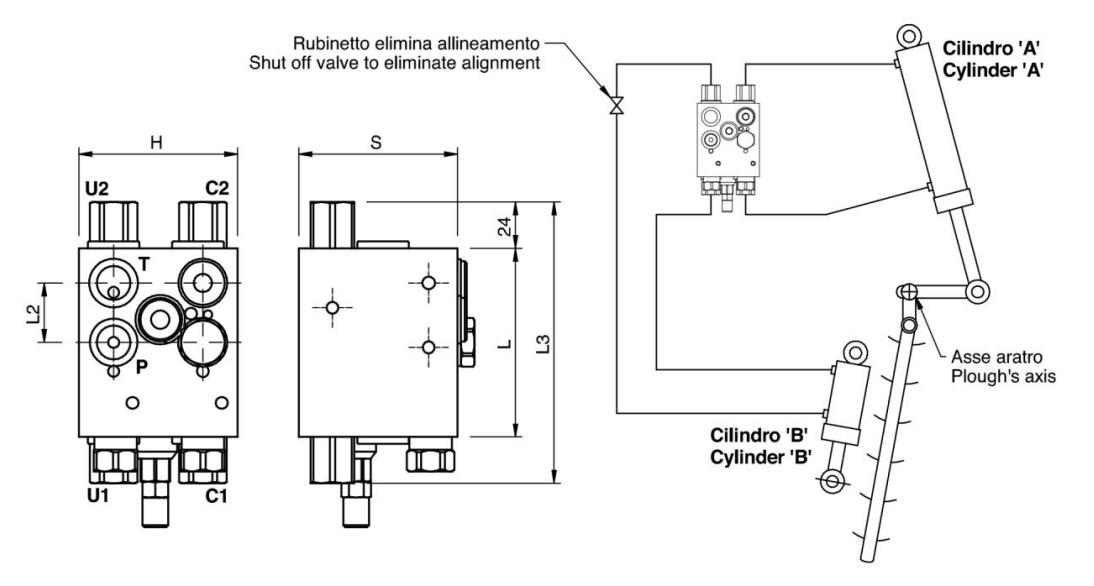

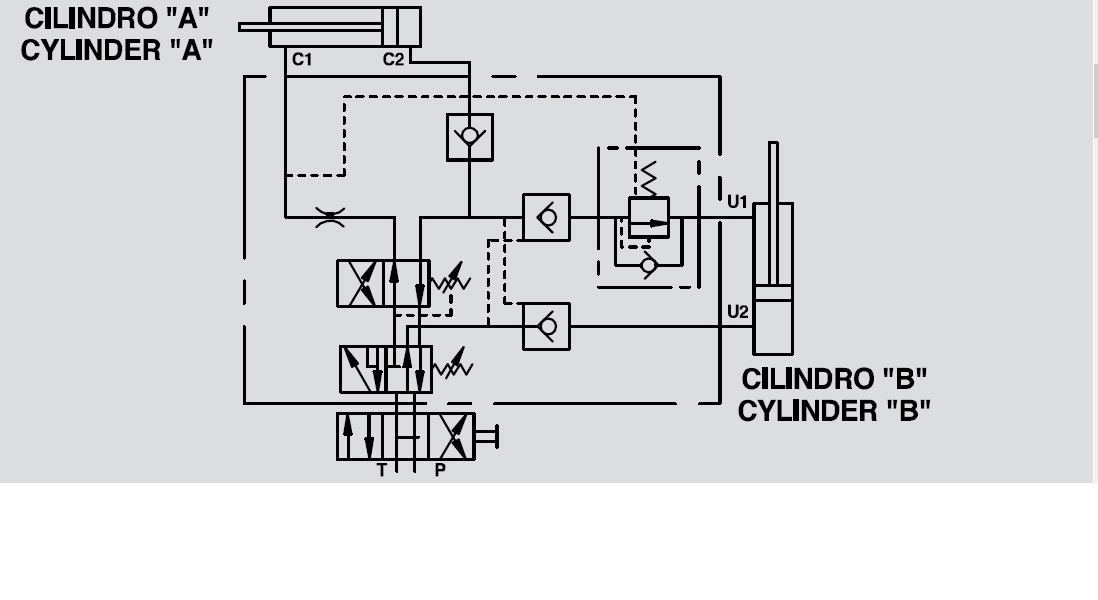

Connect C1 to the rod side, C2 to the head side of the rotation cylinder, U1 to the head side and U2 to the rod side of the alignment cylinder. P and T to the machine's supply. Thanks to its shape, it can be assembled in-line on the hydraulic cylinder or directly fixed onto the plough by the threaded hole in the valve body.
