Hydraulic Double Acting Plough On Land 3/8"x12L Overturning Valve For Cylinder With Memory And Without Memory, VRAP 110/130 FSCM
V0325
Hydraulic Double Acting Plough On Land (Outside Furrow) Overturning Valve For Cylinder With Memory And Without Memory, VRAP 110/130 FSCM, Max Exchange Pressure 250 Bar, Max Pressure 400 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Double Acting Plough On Land 3/8"x12L Overturning Valve For Cylinder With Memory And Without Memory, VRAP 110/130 FSCM

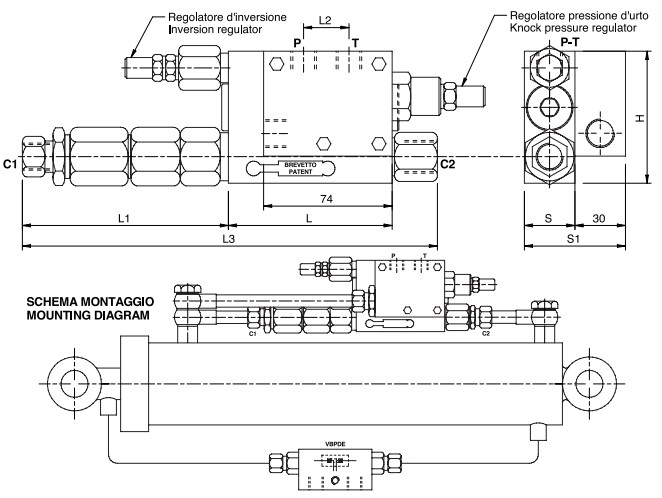

| CODE | TYPE | MAX EXCHANGE PRESSURE Bar |
MAX PRESSURE Bar |
C2 P-T |
C1 mm |
L mm |
L1 mm |
L2 mm |
L3 mm |
H mm |
S mm |
S1 mm |
WEIGHT Kg |
| V0325 | VRAP 110/130 FSCM | 250 | 400 | G 3/8” | Ø12 | 95 | 123 | 30 | 241 | 80 | 35 | 65 | 3.39 |
| V0326 | VRAP 110/130 FSSM | 250 | 400 | G 3/8” | Ø12 | 95 | 123 | 30 | 241 | 80 | 35 | 65 | 3.39 |

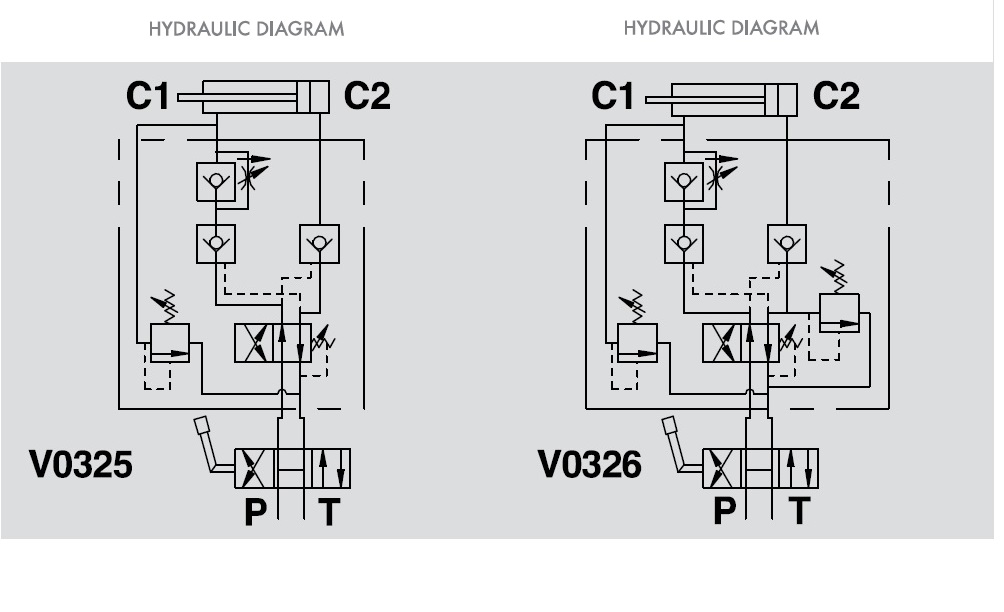

USE AND OPERATION:
Valves for actuators with memory (V0325): designed for use on cylinders with memory for on land reversible ploughs, it incorporates a relief valves which provides protection against shock forces when the plough passes the dead head point.
Valves for actuators without memory (V0326): designed for use on cylinders without memory for on land reversible ploughs, as well as the relief valve it has a pressure limiting function which reduces the maximum cylinder extension (head side) pressure in order not to damage the mechanical stops and the plough's structure.
Both valves are provided with a fixed compensated flow control valve which allows constant speed whether the plough works in farrow or on land.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Loading holding: guided poppet, negligible leakage.
These valves are supplied with exchange pressure at about 150 Bar, the main relief valve is set to 90°Bar and the head side relief valve set to 210 Bar. According to your requirements the pressure settings can be modified.
CONNECTIONS:
Connect C1 and the relief valve to the cylinder's rod side, via the banjo bolt supplied with the valve. Connect C2 to the head side, P and T to the machine's supply.
