Hydraulic Hose Burst Valve Cartridge with Male/Fem Body VUBA 3/4 MMF
V0802
Hydraulic Hose Burst Valve, Female/Female 3/4" MFF, Max Flow 140 L/min, Max Pressure 350 Bar
Product Features:
Customers who bought this product also bought these
Hydraulic Hose Burst Valve Cartridge with Male/Fem Body VUBA 3/4 MMF
| CODE | TYPE | V-C | L1 mm |
L2 mm |
L3 mm |
HEX mm |
WEIGHT Kg |
| V0772 | VUBA 1/4”+MMF | G1/4” | 50 | 12 | 28 | 19 | 0.064 |
| V0782 | VUBA 3/8”+MMF | G3/8” | 58 | 13 | 31 | 24 | 0.120 |
| V0792 | VUBA 1/2”+MMF | G1/2” | 62 | 14 | 33 | 27 | 0.140 |
| V0802 | VUBA 3/4”+MMF | G3/4” | 75 | 16 | 40 | 32 | 0.228 |
| V0812 | VUBA 1”+MMF | G1” | 85 | 19 | 43 | 41 | 0.456 |
USE AND OPERATION:
Valves used to prevent the uncontrolled descent of an actuator in the case of a hose burst. When the flow exceeds in the valve setting (reaction flow), the valve will block the flow. These valves are not load holding or unidirectional restrictors.
A flow control valve is recommended downstream of the valve.
MATERIALS AND FEATURES:
Body: steel, burnished.
CONNECTIONS:

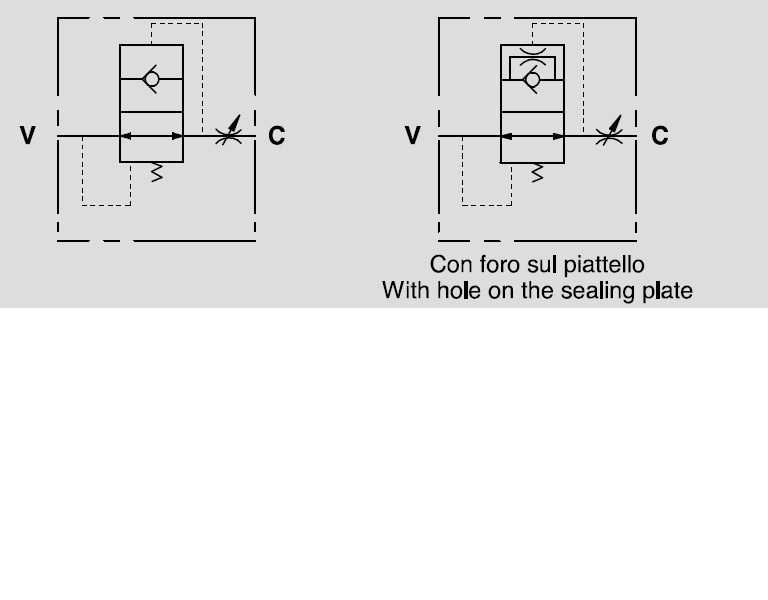

Screw the valve into the correct port connecting V to the supply flow and C to the actuator.
ON REQUEST:
- Preset hose bursts available (the reaction flow should be set to 1.5 times the flow rate of the system). Please specify flow (It/min) or distance S (mm) from the flat to the valve.
- Hole on the flat (CODE/F, please specify hole on the sealing face) for a slow load descent with closed valve.
- Valve complete with male-female or female-female body for in line mounting by the actuator.
