Walvoil Hydraulic Gear Pump, Group 1, 0.89CC, Clockwise, 3/8" BSP Inlet, & Outlet, EU 4Bolt 1/8 Taper
1GP10010000
Walvoil Hydraulic Gear Pump, Group 1, 0.89CC, Clockwise, 3/8" BSP Inlet, & Outlet, EU 4Bolt 1/8 Taper
Product Features:
Customers who bought this product also bought these
Walvoil Hydraulic Gear Pump, Group 1, 0.89CC, Clockwise, 3/8" BSP Inlet, & Outlet, EU 4Bolt 1/8 Taper
The Walvoil 1SP Group 1 Hydraulic Gear Pump is a compact, high-performance solution engineered for precision and reliability in demanding hydraulic systems. Designed to deliver consistent fluid flow and pressure, this gear pump is ideal for applications across agriculture, construction, material handling, and industrial machinery.

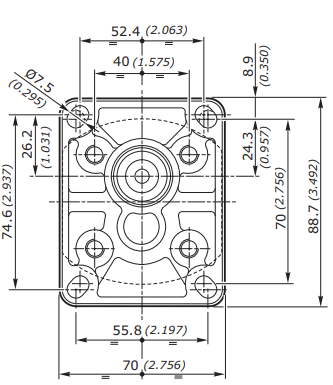

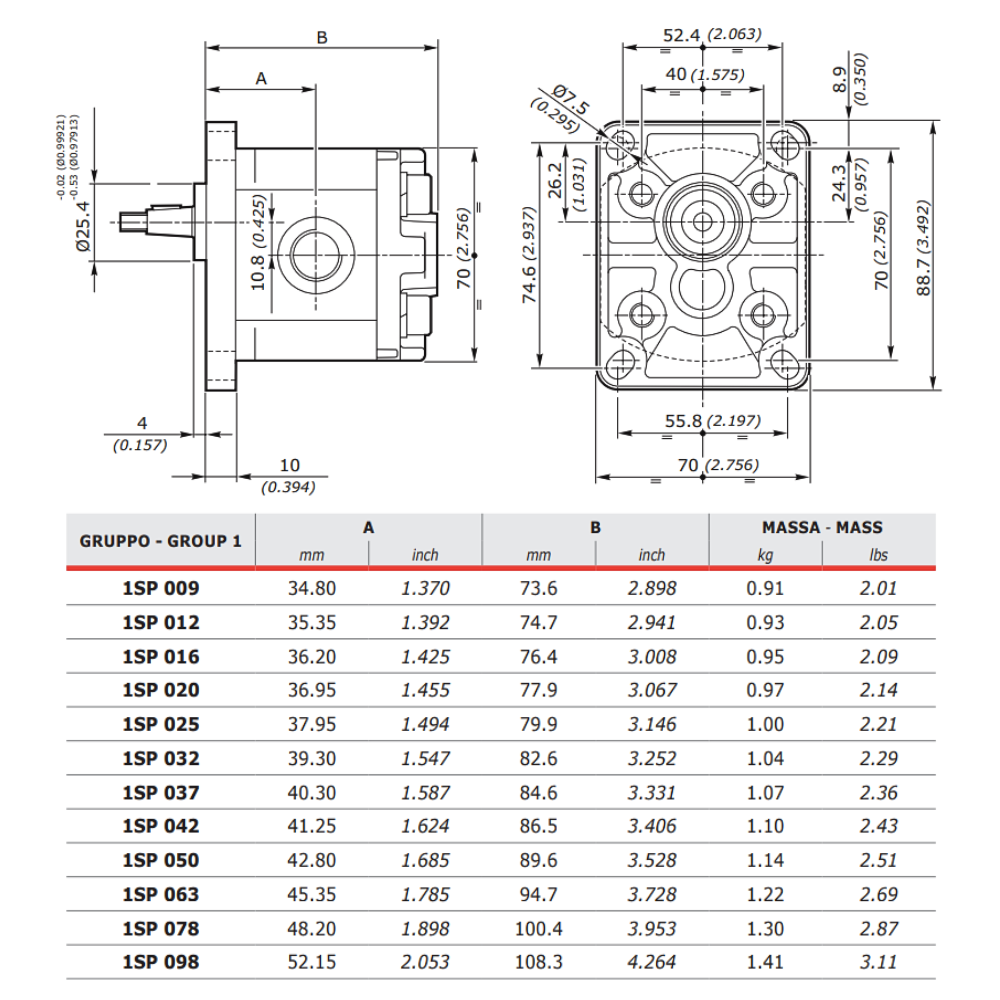

FLANGE

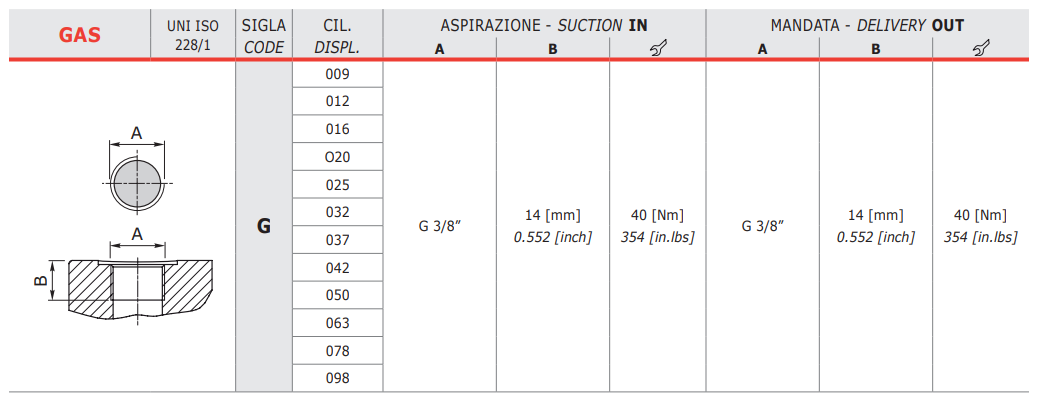

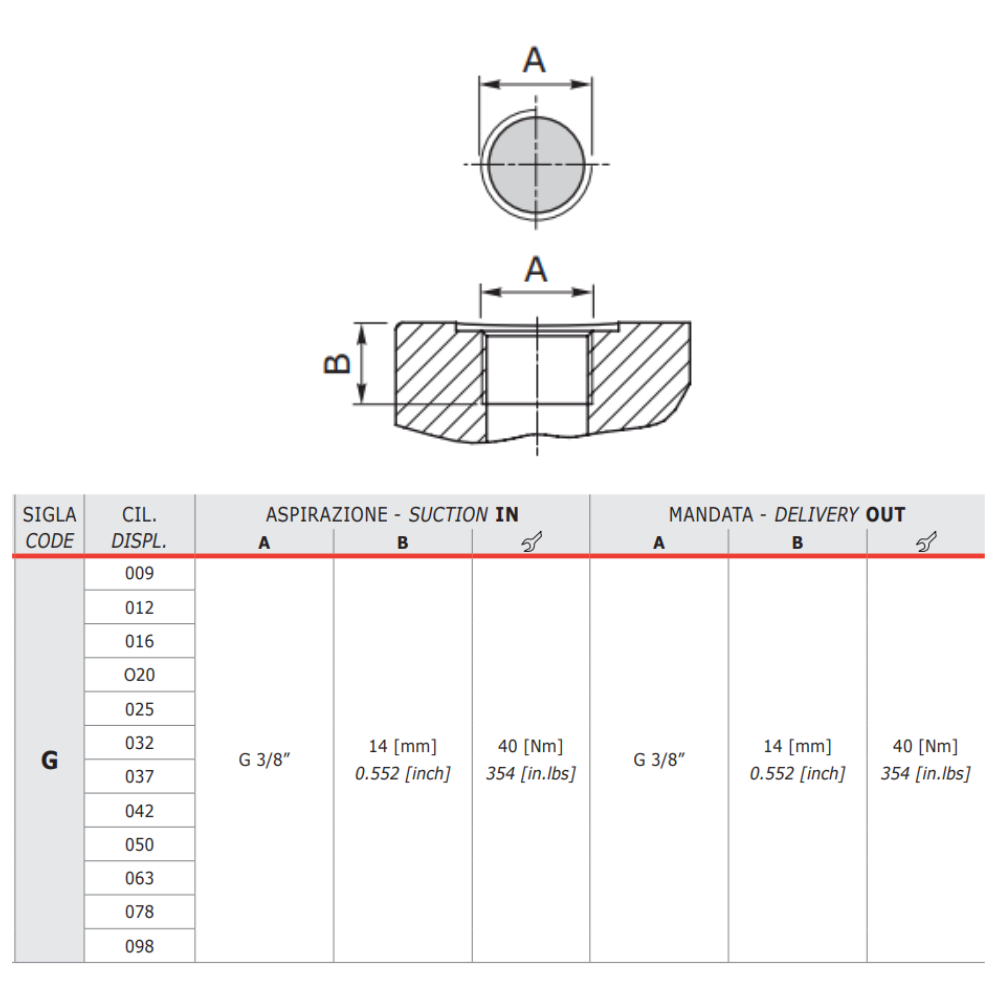

BSP PORTS

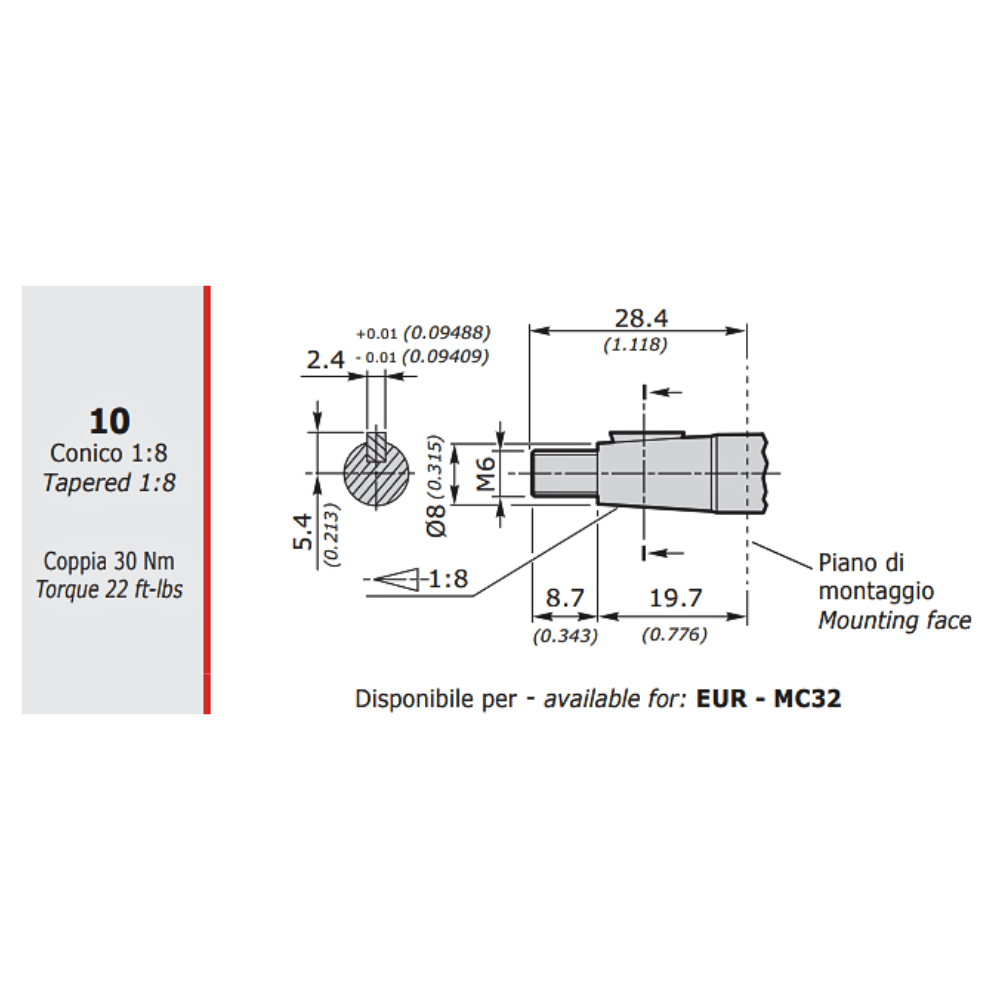

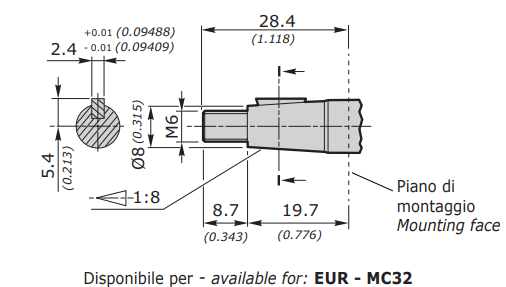

SHAFT - TYPE 10
| TYPE | DISPLACEMENT | P1 Working pressure | P2 Intermittent pressure | P3 Max peak pressure | ROTATION SPEED | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| cm3/rev | in3 /rev | Bar | PSI | Bar | PSI | Bar | PSI | Max (rpm) | Min (rpm) | |
| 1SP 009 | 0.89 | 0.05 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 6000 | 600 |
| 1SP 012 | 1.18 | 0.07 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 6000 | 600 |
| 1SP 016 | 1.6 | 0.10 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 6000 | 400 |
| 1SP 020 | 2.0 | 0.12 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 5500 | 400 |
| 1SP 025 | 2.5 | 0.15 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 5000 | 400 |
| 1SP 032 | 3.2 | 0.20 | 260 | 3770 | 280 | 4060 | 290 | 4205 | 4500 | 400 |
| 1SP 037 | 3.7 | 0.23 | 250 | 3625 | 270 | 3915 | 280 | 4060 | 4000 | 400 |
| 1SP 042 | 4.2 | 0.26 | 250 | 3625 | 270 | 3915 | 280 | 4060 | 3500 | 400 |
| 1SP 050 | 5.0 | 0.31 | 250 | 3625 | 270 | 3915 | 280 | 4060 | 3000 | 400 |
| 1SP 063 | 6.3 | 0.38 | 170 | 2465 | 190 | 2755 | 210 | 3045 | 2700 | 400 |
| 1SP 078 | 7.76 | 0.47 | 170 | 2465 | 190 | 2755 | 210 | 3045 | 2500 | 400 |
| 1SP 098 | 9.78 | 0.6 | 150 | 2175 | 170 | 2465 | 190 | 2755 | 2000 | 400 |
TECHNICAL INFORMATION
HYDRAULIC FLUIDS
It is advisable to use hydraulic oils of mineral origin with anti-foaming, antiwear, anti-oxidant and anti-corrosion characteristics and rapid air removal properties and a high viscosity index;
• Recommended viscosity 15÷92 mm2/s (cSt)
• Start-up viscosity limit 2000 mm2/s (cSt)
During normal operation, the oil temperature must be between 20°C and 65°C with limit values between -20°C and 80°C with NBR gasket and limit values between -15°C and 100°C with Viton gasket.
SUCTION PRESSURE
The allowed working pressure supplied must be in the range 0.7 - 3 bar (absolute). For higher values (up to 30 bar), it is necessary to use sealing ring for high pressures.
SUCTION PIPES
Particular attention must be given to the sizing of rigid or flexible pipes, avoiding disproportionate lengths, sudden variations in cross section or small curvature radius, in any case selecting pipe cross-sections that guarantee an oil speed between 0.6 and 2 m/s.
FILTRATION
In order to eliminate any oil impurity and to guarantee a longer duration of the pump, the system must be equipped with effective filtration, whose operation must be periodically
checked.
The recommended filtration levels are as follows:
Up to 150 bar:
21/19/16 (ISO 4406) class 10 (NAS 1638)
Over 150 bar:
20/18/15 (ISO 4406) class 9 (NAS 1638)
