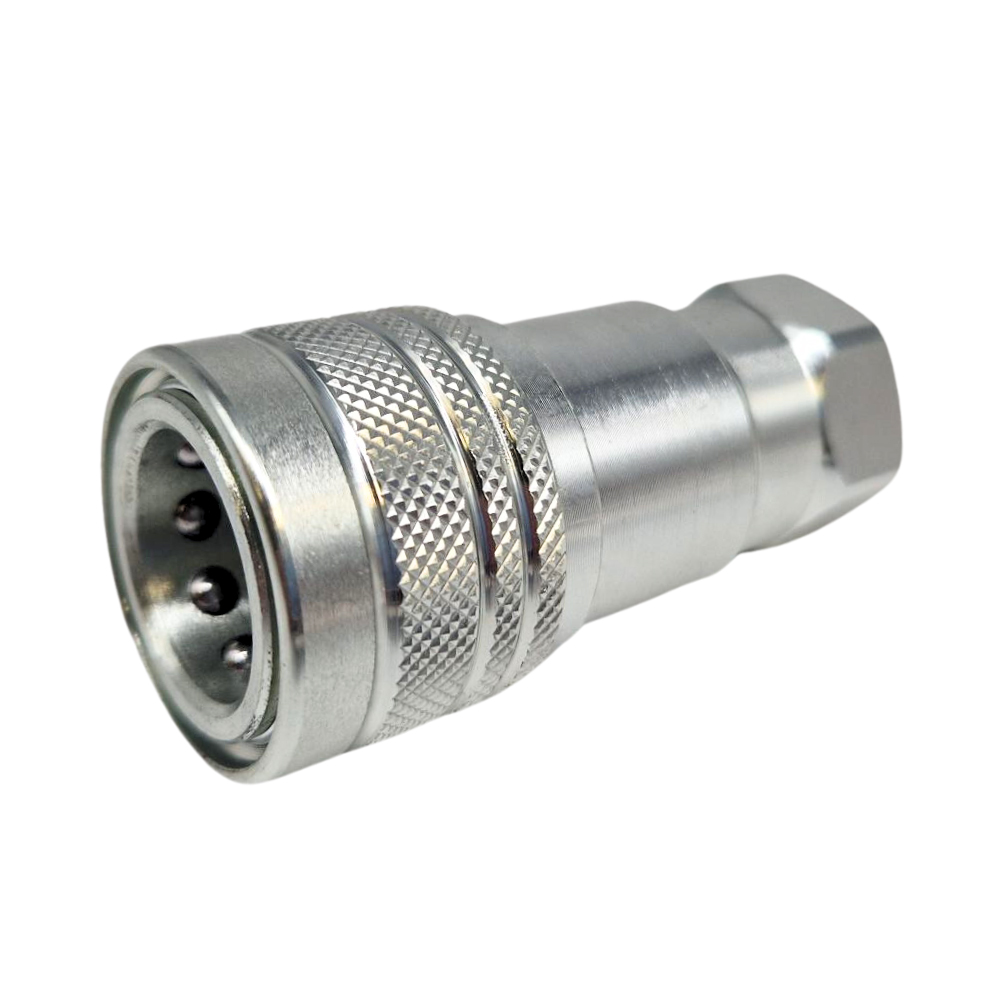

Hydraulic ISO A quick release coupling, Female, 3/8" BSP
QRCISOAF38
Hydraulic ISO A quick release coupling, Female, 3/8" BSP. These couplings follow the ISO 7241-A standard, which ensures interchangeability and compatibility across different manufacturers
Product Features:
Customers who bought this product also bought these
Hydraulic ISO A quick release coupling, Female, 3/8" BSP

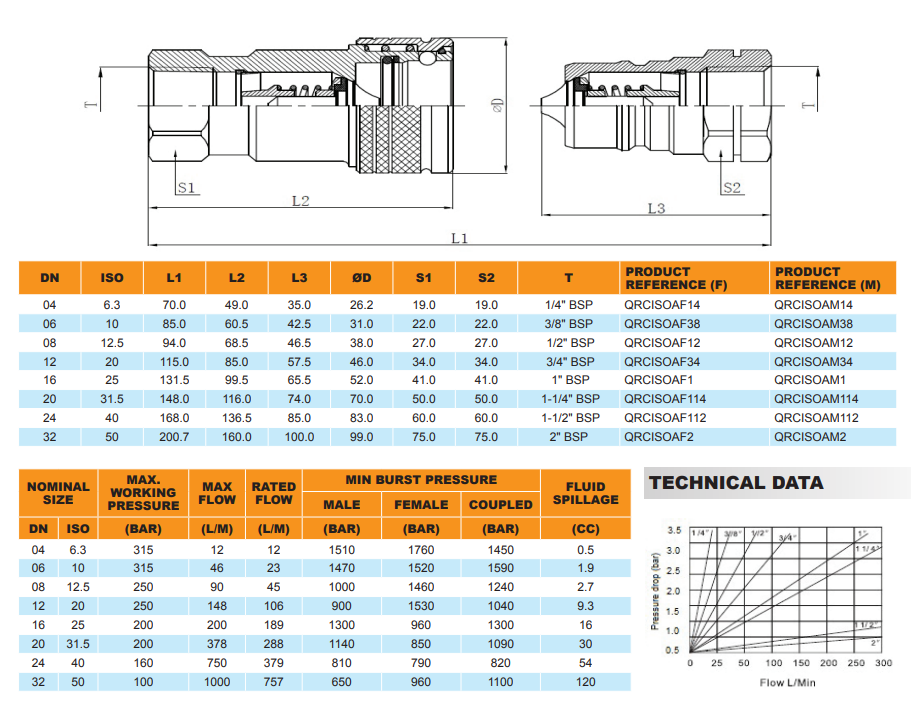

Please refer to the specification table below to ensure the correct size is selected.
| DN | ISO | L1 | L2 | L3 | ØD | S1 | S2 | N | T | PRODUCT REFERENCE (F) | PRODUCT REFERENCE (M) |
| 4 | 6.3 | 70.5 | 49.2 | 35 | 26 | 19 | 19 | Ø11.85 | 1/4" BSP | QRCISOAF14 | QRCISOAM14 |
| 6 | 10 | 85.7 | 60.5 | 42.5 | 30.5 | 22 | 22 | Ø17.3 | 3/8" BSP | QRCISOAF38 | QRCISOAM38 |
| 8 | 12.5 | 93 | 68.5 | 46.5 | 38 | 27 | 27 | Ø20.55 | 1/2" BSP | QRCISOAF12 | QRCISOAM12 |
| 12 | 20 | 114.2 | 84.1 | 57.1 | 46 | 34 | 34 | Ø29.1 | 3/4" BSP | QRCISOAF34 | QRCISOAM34 |
| 16 | 25 | 131.8 | 99.5 | 65.5 | 52 | 41 | 41 | Ø34.35 | 1" BSP | QRCISOAF1 | QRCISOAM1 |
| 20 | 31.5 | 148 | 116 | 74 | 69.5 | 50 | 50 | Ø45 | 1-1/4" BSP | QRCISOAF114 | QRCISOAM114 |
| 24 | 40 | 168 | 134.7 | 84 | 82 | 60 | 60 | Ø55 | 1-1/2" BSP | QRCISOAF112 | QRCISOAM112 |
| 32 | 50 | 200.2 | 160 | 100 | 99 | 75 | 75 | Ø65.1 | 2" BSP | QRCISOAF2 | QRCISOAM2 |
| NOMINAL SIZE | MAX WORKING PRESSURE | MAX FLOW | RATED FLOW | MIN BURST PRESSURE | FLUID SPILLAGE | |||
| MALE | FEMALE | COUPLED | ||||||
| DN | ISO | (BAR) | (L/M) | (L/M) | (BAR) | (BAR) | (BAR) | (CC) |
| 4 | 6.3 | 350 | 17 | 12 | 1500 | 1700 | 1400 | 0.5 |
| 6 | 10 | 350 | 46 | 23 | 1400 | 1500 | 1500 | 1.9 |
| 8 | 12.5 | 250 | 90 | 45 | 1000 | 1400 | 1200 | 2.7 |
| 12 | 20 | 250 | 190 | 106 | 900 | 1500 | 1000 | 9.3 |
| 16 | 25 | 250 | 280 | 189 | 1300 | 1300 | 1200 | 16 |
| 20 | 31.5 | 200 | 480 | 288 | 1100 | 850 | 1000 | 30 |
| 24 | 40 | 190 | 757 | 379 | 800 | 800 | 820 | 54 |
| 32 | 50 | 160 | 1000 | 757 | 650 | 960 | 1000 | 120 |
Flowfit ISO A Quick Release Couplings
Flowfit hydraulic ISO A quick release couplings are are standardized hydraulic connectors designed for quick and efficient connection and disconnection of hydraulic lines without the need for tools. These couplings follow the ISO 7241-A standard, which ensures interchangeability and compatibility across different manufacturers. They are widely used in agricultural, construction, and industrial applications for their ease of use and reliability.
Interchanges with:
- Parker6600
- Perfecting K
- Safeway S5
- Snap Tite 61
- Tomco A5600
- Aeroquip FD56
- DNP PAV
- Stucchi BIR
Red plastic caps/aluminium plugs available or female/male couplings available to protect and stop dirt entering the quick releases and your hydraulic circuit.
SPECIFICATION
Standard: ISO 7241-1A
Materials: Zinc-plated carbon steel body
Seals: Standard in nitrile NBR. On request FKM & EDM Seals
Back-up ring: PTFE
Working temperature: with standard seals -25°c + 125°c
INSTRUCTIONS FOR USE
Prior to connecting ensure that the mating parts of the couplings are clean and free of dirt to avoid contamination of the hydraulic system. To connect, pull the collar on the female coupling back and insert the male coupling as far as it will go. Release the collar to lock the couplings together. To disconnect, pull the collar on the female coupling back and allow the male coupling to disengage.
CAUTION
Under no circumstances should the couplings be connected or disconnected with pressure in the hydraulic system. Whilst in use, the couplings may become hot (up to +100°C). Protective gloves should be worn when disconnecting. To reduce the risk of contamination, the use of protective caps on the couplings when they are disconnected is strongly recommended (available separately).
