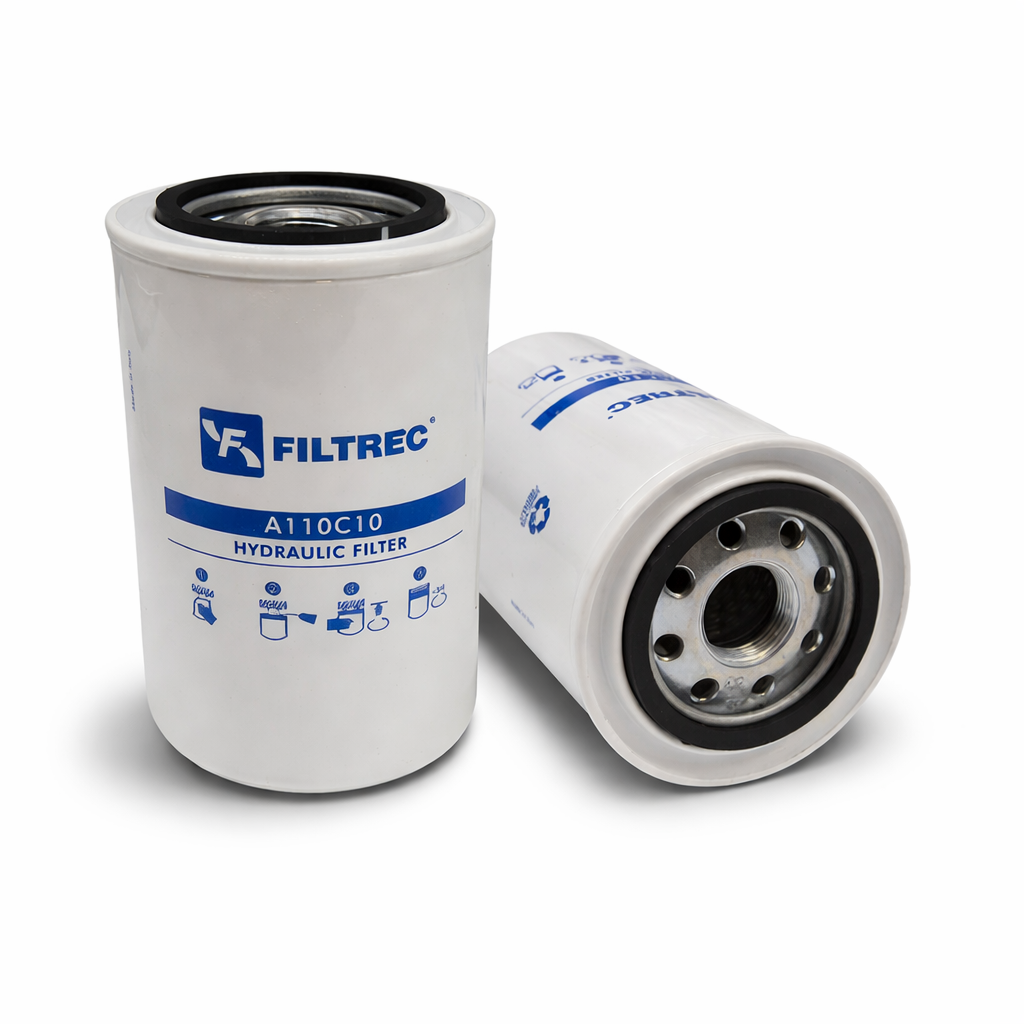

Filtrec A110C10 Spin-On Cartridge
A110C10
Filtrec
The Filtrec A110C10 Spin-On Cartridge is our Flowfit Approved filter replacement. The Spin-On Cartridge is designed to provide the same quality and performance, ensuring superior filtration performance and long-lasting durability.
Over its lifespan, the A110C10 provides reliable and consistent performance, even in extreme operating environments. You are getting a reliable and exceptional replacement filter that will keep your system operating safely and smoothly.

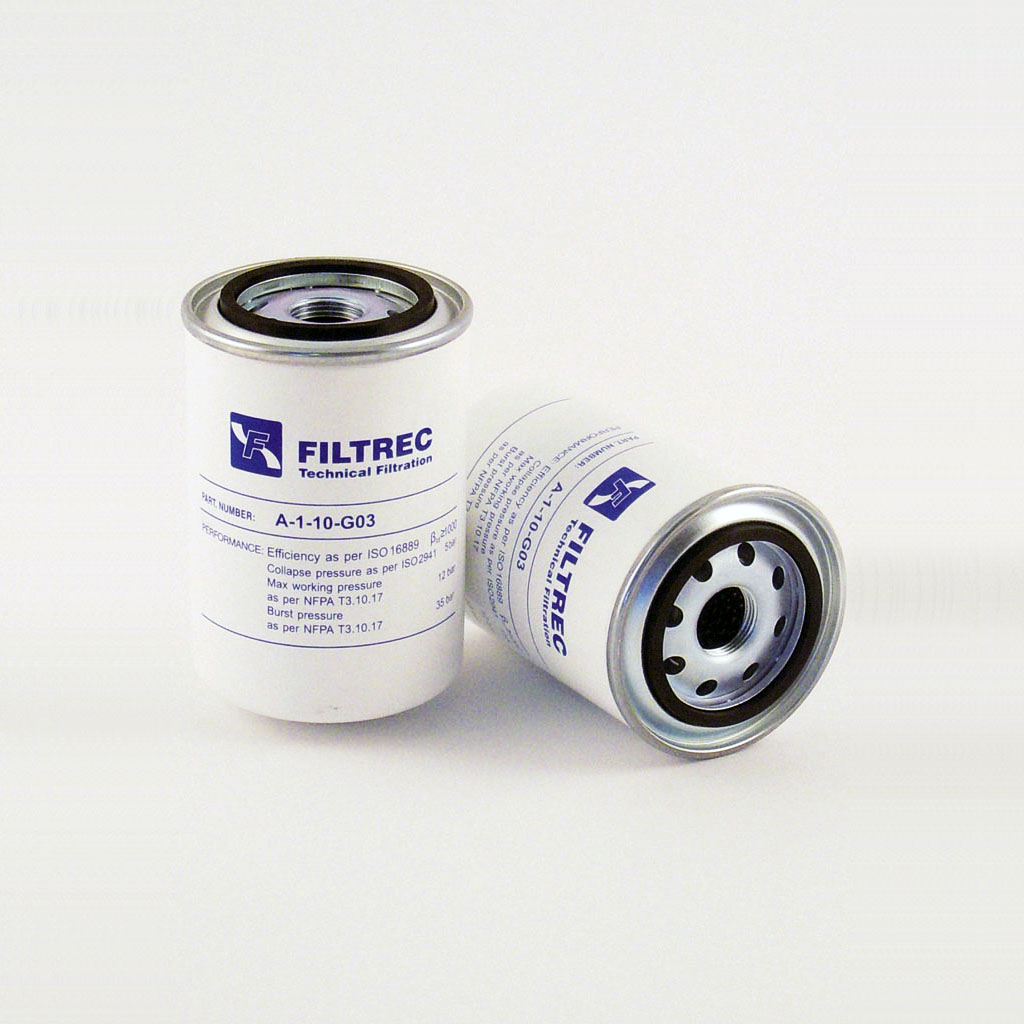

Photos are for representation only.Product Features:
Filtrec A110C10 Spin-On Cartridge
OD (D1) (MM) | ID (D2) (MM) | LENGTH 1 (H1) (MM) | LENGTH 2 (H2) (MM) | THREAD SIZE | MEDIA/MICRON RATING | COLLAPSE PRESSURE (BAR) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | BYPASS FITTED | BYPASS SETTING (BAR) | FLOW DIRECTION | SEALS |
---|---|---|---|---|---|---|---|---|---|---|---|---|
96 | 0 | 147 | 0 | G 3/4 | C10 | 5 | 12 | 20 | NO | 0 | OUT-IN | NBR |
FA-1 HYDRAULIC RETURN LINE SPIN-ON FILTERS
Technical Information
In line low-pressure spin-on filter assemblies, suction and return lines.
Max flow rate: 300 l/min (79 gpm)
Max working pressure: As per NFPA T 3.10.17: 12 Bar (175 psi)
Test pressure: As per NFPA T 3.10.17: 15 Bar (217.5 psi)
Burst pressure: As per NFPA T 3.10.17: 20 Bar (290 psi)
Connection Ports: BSP
By-pass setting: suction line 0,25 Bar (3.6 psi) return line 1,7 Bar (24.6 psi)
Indicator: Visual and electrical
Working temperature: -25C + 120C
Materials:
Head: aluminium
Housing: carbon steel
Seal: Buna-N
Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and some synthetic or vegetable oils. With other fluid applications please contact Filtrec S.p.A
Filter Element
Filter media: Microglass fiber 3,6,10,25 um
Cellulose: 10,25 um
Wire mesh: 60, 125 um
Collapse pressure: as per ISO 2941: 4 Bar (58 psi)
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATION.
Manufacturers code: A110C10
MANUFACTURER | STOCK CODE |
---|---|
ADAM PUMPS | FT1000 |
AIRFIL | AFO36610 |
BALDWIN | BT36610 |
BENFORD | 800512 |
BOSCH | 9455251450 |
BUSSE | HA045 |
CANFLO | RSE3510N |
CARRARO | 5144524001 |
CATERPILLAR | 3I1810 |
CATERPILLAR | 5E5754 |
CIM-TEK | 70184 |
CLARK | 6644015 |
CLEAN FILTERS | DO901 |
CROSLAND | 7501 |
DIAMOND | FDI151810 |
DOMANGE | FD31P10 |
DONALDSON | 182060100 |
DONALDSON | CA60.1 |
DONALDSON | P171605 |
DONALDSON | P550268 |
DONALDSON | P565243 |
EPPENSTEINER | 7.SL45P10P |
EPPENSTEINER | 8.7SL45P10P |
EPPENSTEINER | 80.4521P10S000P |
ERREMA | 24521 |
EUROFILTER | S15110P10 |
FAI ESCAVATORI | 848101111 |
FAI FILTRI | 03742421 |
FAI FILTRI | CS5000P10A |
FAIREY ARLON | AS351NP10B |
FBN | FHL110N1 |
FBN | FHL1M10 |
FILPRO | SOE510 |
FILTER MART | 250070 |
FILTER MART | 250190 |
FILTER MART | 250304 |
FILTER MART | 250312 |
FILTER MART | 551518 |
FINN FILTER | FC1002N010BS |
FINN FILTER | FC1052N010BS |
FINN FILTER | FFPA1105210 |
FLEETGUARD | HF6173 |
FLEETGUARD | HF6535 |
FLOW EZY | FEE3010 |
FLUID POWER EXPRESS | LH070005 |
FRAM | P6809 |
HYCON | MFE8010P1 |
HYDAC | 02062381 |
HYDAC | 0080MG010P |
HYDROFIL | GLH110C10 |
HYDROFIL | GLH120C10 |
HYDROLINE | SE2010B |
IKRON | 4620135SSP010B |
IKRON | HEK4520135ASSP010 |
IKRON | HHC01838 |
INGERSOLL-RAND | A90303348 |
INGERSOLL-RAND | A90318735 |
INTERNORMEN | 300000 |
INTERNORMEN | WP45.10P |
JCB | 32902301 |
KVK HYDRA KLOV | 1002187KVK |
LES HALL | LH057994 |
LES HALL | LHHY936077 |
LHA | SPE1610 |
LUBER FINER | LFH8534 |
MAIN FILTER | MF0057994 |
MAIT | 2553046 |
MP FILTRI | CS050P10A |
MP FILTRI | CS5010 |
MP FILTRI | CS50P10A |
NATIONAL FILTERS | 70315 |
NUOVO PIGNONE | TLO24521 |
OMT | CS05AN |
PARKER | 921166 |
PARKER | PR4021 |
PEL JOB | E6050013 |
RENAULT | X250615704 |
REXROTH | 80.4521P10S000M |
REXROTH | 804521P10S000M |
REXROTH | R928016609 |
ROSROCA | S2310020630030 |
RYCO FILTERS | RIFE0625 |
SANDVIK | 77720380 |
SEPARATION TECHNOLOGIES | ST5510 |
SOFIMA HYDRAULICS | C151ECD |
SOFIMA HYDRAULICS | CA151CD1 |
SOFIMA HYDRAULICS | CA151ECD1 |
SOFIMA HYDRAULICS | CCA151ECD1 |
SOFIMA HYDRAULICS | S8001RH |
SOFRANCE | NS10P010 |
SOTRAS | SH8143B |
STAUFF | SFC3510E |
STEP FILTERS | HID4668 |
TEHO FILTER | OK148 |
TOMRA | 486976800 |
UCC | MX1518410 |
UCC | UCMS1518410 |
UCC | UCMX1518410 |
UFI | 8000100 |
UFI | ESE11NCC |
UNI-CARDAN | CF05AN |
WIX | 51249 |
WIX | A02A10C |
