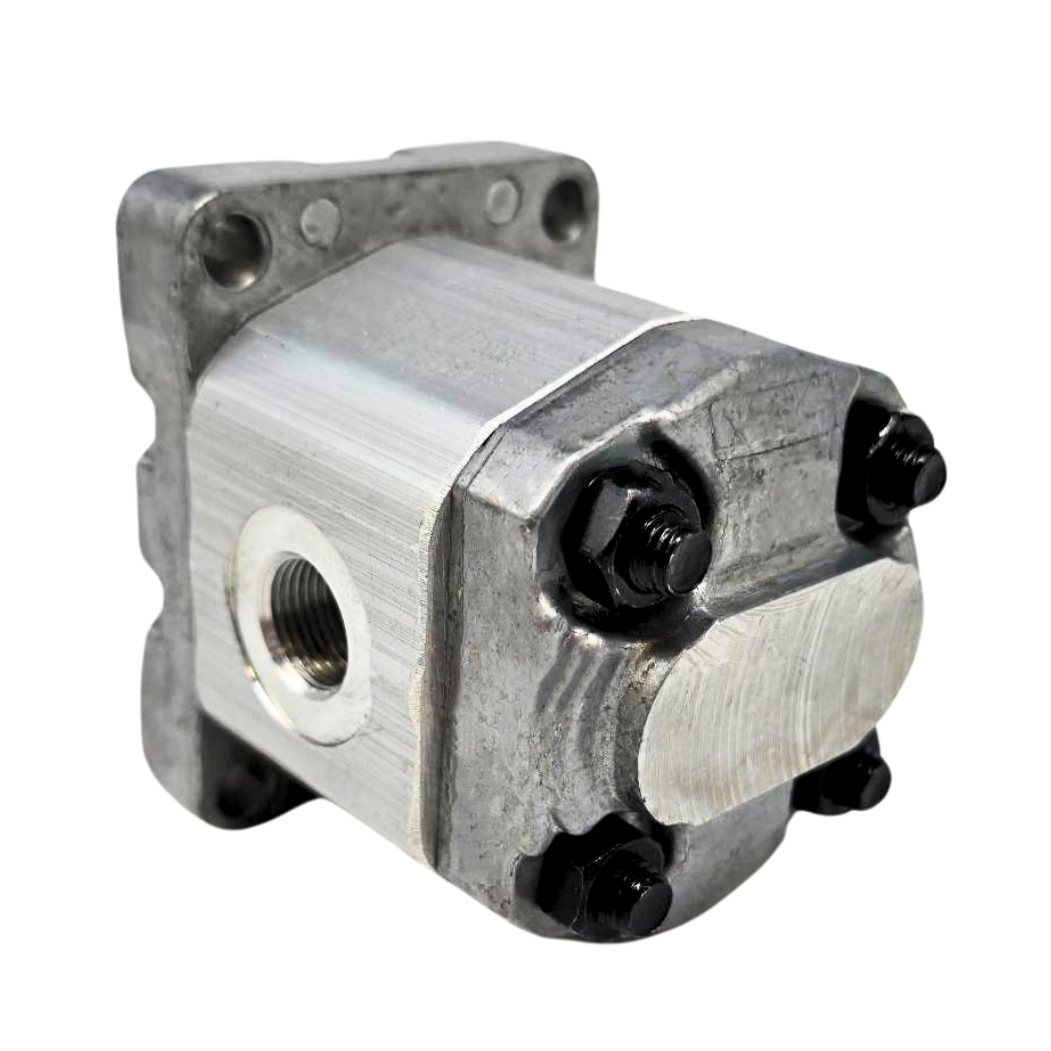

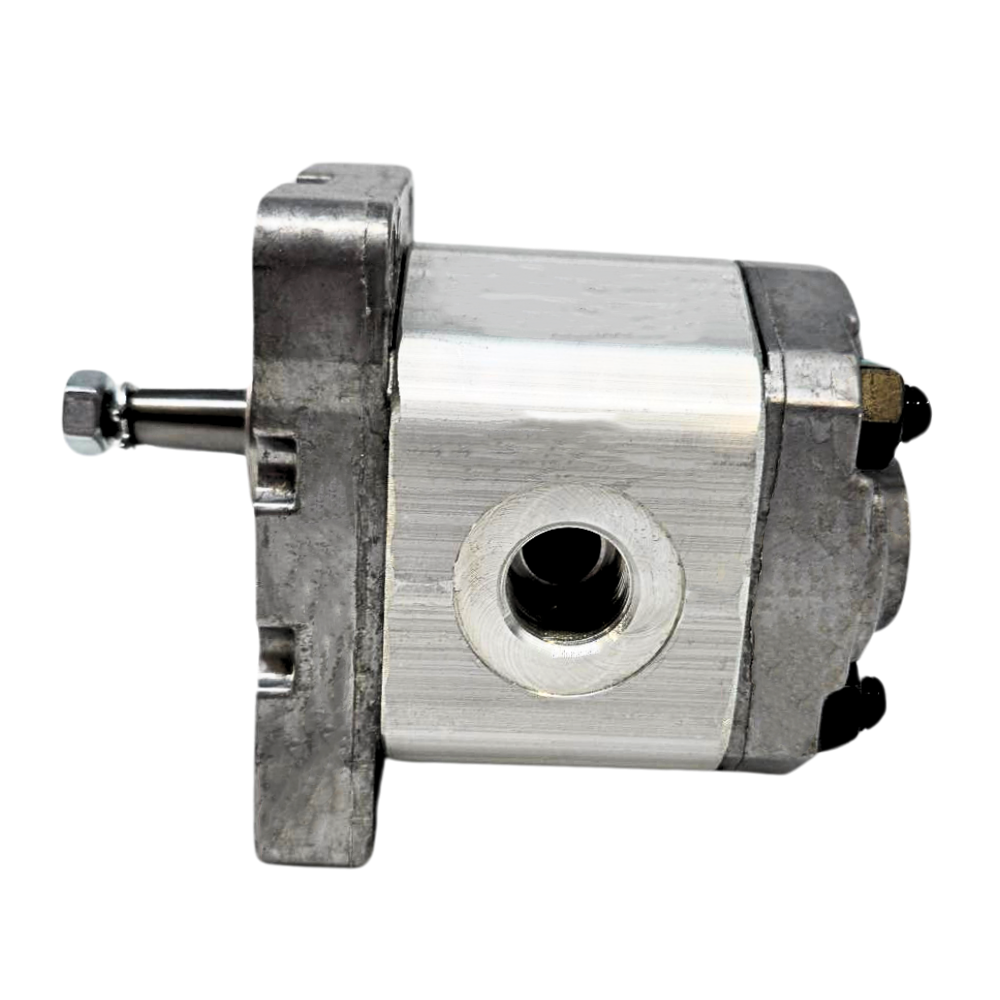

Flowfit Hydraulic Gear Pump, GP1, 1.1CC, Clockwise 3/8" Inlet & 3/8" Outlet BSP Ports, 4 Bolt EU Flange
VNKB0100000B
Flowfit Hydraulic Gear Pump, GP1, 1.1CC, Clockwise 3/8" Inlet & 3/8" Outlet BSP Ports, 4 Bolt EU Flange
Product Features:
Customers who bought this product also bought these
Flowfit Hydraulic Gear Pump, GP1, 1.1CC, Clockwise 3/8" Inlet & 3/8" Outlet BSP Ports, 4 Bolt EU Flange

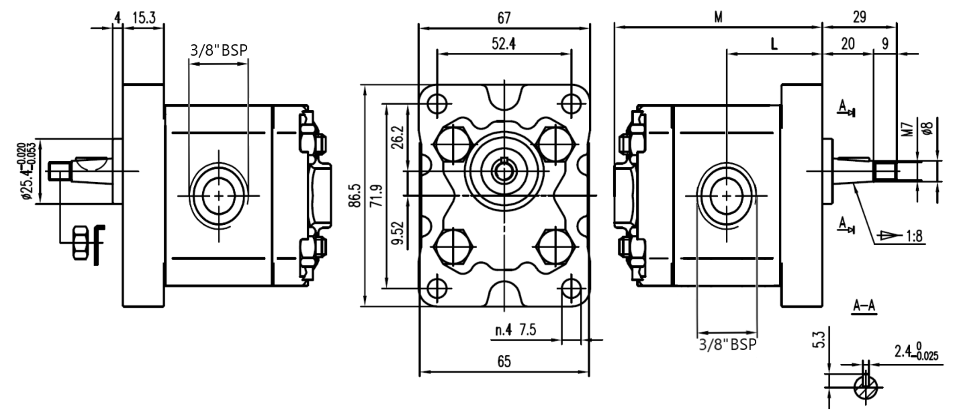

| Displacement | Max Pressure | Max Speed | Min Speed | Dimensions | |||
| M | L | ||||||
| cm3 /rev | P1 | P2 | P3 | r/min | r/min | mm | mm |
| 0.8 | 250 | 270 | 290 | 6000 | 1000 | 73.5 | 32.8 |
| 1.1 | 250 | 270 | 290 | 6000 | 1000 | 74 | 33 |
| 1.3 | 250 | 270 | 290 | 6000 | 1000 | 75 | 33.5 |
| 1.6 | 250 | 270 | 290 | 6000 | 1000 | 76 | 34 |
| 1.8 | 250 | 270 | 290 | 6000 | 1000 | 77 | 34.5 |
| 2.1 | 250 | 270 | 290 | 6000 | 1000 | 78 | 35 |
| 2.7 | 250 | 270 | 290 | 6000 | 800 | 80 | 36 |
| 3.2 | 250 | 270 | 290 | 5000 | 800 | 82 | 37 |
| 3.7 | 250 | 270 | 290 | 4500 | 800 | 84 | 38 |
| 4.2 | 250 | 270 | 290 | 4000 | 800 | 86 | 39 |
| 4.8 | 230 | 250 | 270 | 3500 | 600 | 88 | 40 |
| 5.8 | 230 | 250 | 270 | 3000 | 600 | 92 | 42 |
| 7 | 210 | 230 | 250 | 2500 | 600 | 96 | 44 |
| 8 | 180 | 200 | 230 | 2100 | 600 | 100 | 46 |
| 9.8 | 150 | 170 | 190 | 2100 | 600 | 104 | 48 |
Flowfit Hydraulic Gear Pumps Group 1
Our standard range of Group 1 gear pumps offers displacements from 1.1cc to 8cc. Each pump features BSP threaded ports, 1:8 tapered keyed shafts, and European 4-bolt flanges.
All pumps are supplied in a clockwise rotation, with anti-clockwise options available upon request.
Key Features:
- Compact Design: Ideal for equipment with space constraints.
- Operating Pressure: Supports up to 250 bar
- Porting Options: Available in threaded, or elbow ported.
- Versatility: Commonly used in agricultural machinery, compact construction equipment, and mobile hydraulics.
- Rotation Options: Can be supplied in clockwise or counter clockwise rotation depending on system requirements.
- Shaft Options: Various shaft styles like tapered, splined, or keyed are available on request to match different drive configurations.
