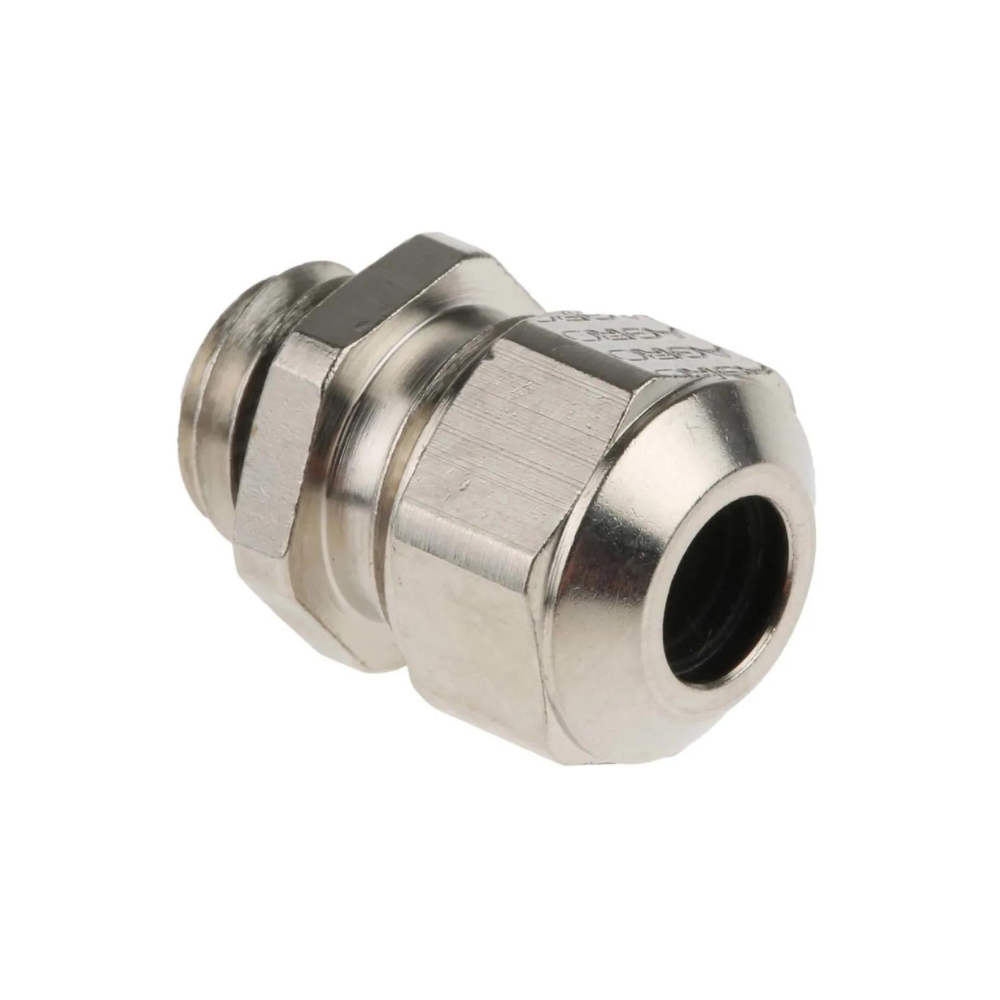

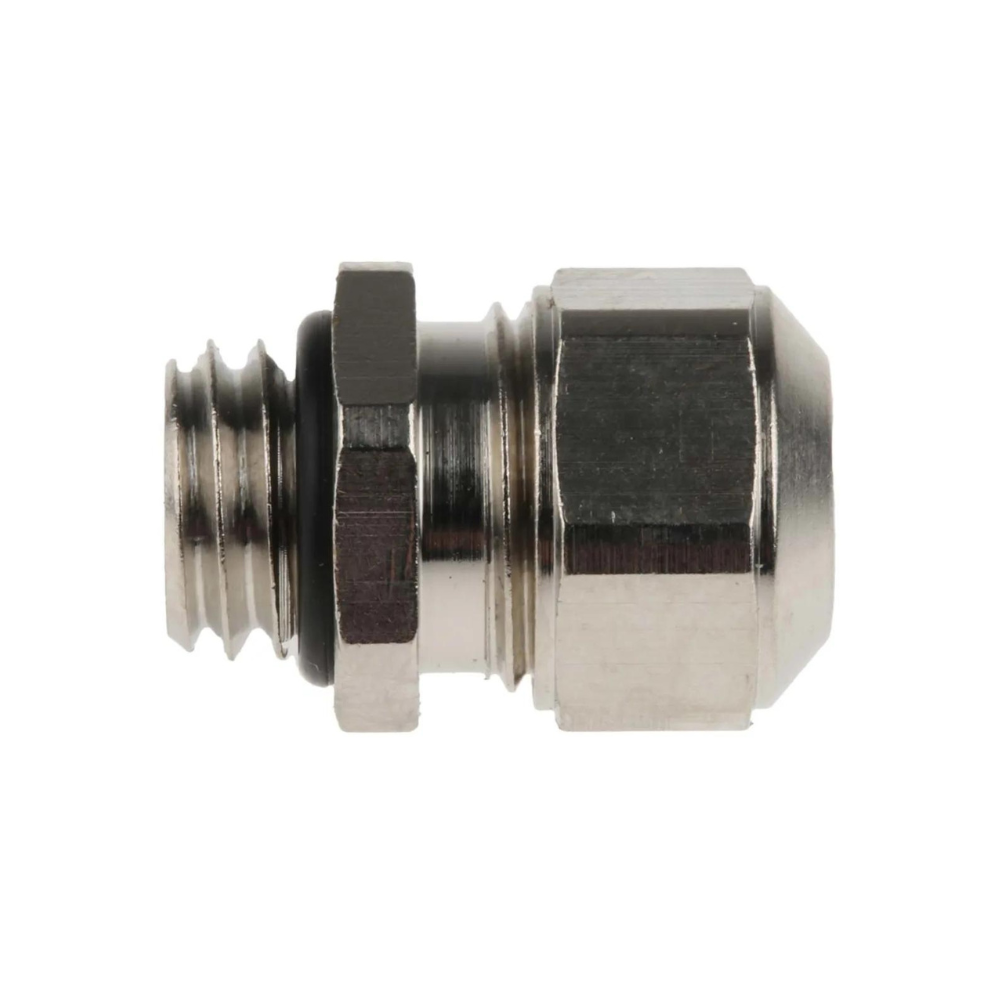

Nickel Plated Brass Cable Gland, M10 Thread, 4mm Min, 6mm Max, IP68, IP69K
364-6974
Nickel Plated Brass Cable Gland, M10 Thread, 4mm Min, 6mm Max, IP68, IP69K
From SES, the A1 series of IP68 metal cable glands designed for use with unarmoured electrical cable. Rugged in construction the tough cable glands provide excellent cable retention and optimal strain relief ensuring a fully watertight seal is maintained at all times. Constructed from nickel plated brass with a double entry seal the A1 series have full-range tightening, providing excellent environmental protection for the harshest of applications.
Customers who bought this product also bought these
Nickel Plated Brass Cable Gland, M10 Thread, 4mm Min, 6mm Max, IP68, IP69K
From SES, the A1 series of IP68 metal cable glands designed for use with unarmoured electrical cable. Rugged in construction the tough cable glands provide excellent cable retention and optimal strain relief ensuring a fully watertight seal is maintained at all times. Constructed from nickel plated brass with a double entry seal the A1 series have full-range tightening, providing excellent environmental protection for the harshest of applications.
Features and benefits
• IP68, 10 Bar
• Nickel-plated brass
• Choice of PG or Metric thread
• For use with Non-armoured cable
• Excellent vibration resistance
• Double seal protection
• Inner seal TPE
• NBR O-ring
• Wide temperature range
-40° C to + 100°C for metric threads
-20°C to + 100°C for PG threads
Specifications
Attribute | Value |
Thread Size | M10 |
Maximum Cable Diameter | 6mm |
Minimum Cable Diameter | 4mm |
Material | Nickel Plated Brass |
Colour | Metallic |
Series | A1 |
IP Rating | IP68, IP69K |
Maximum Operating Temperature | +100°C |
Minimum Operating Temperature | -40°C |
Standards Met | cULus |
