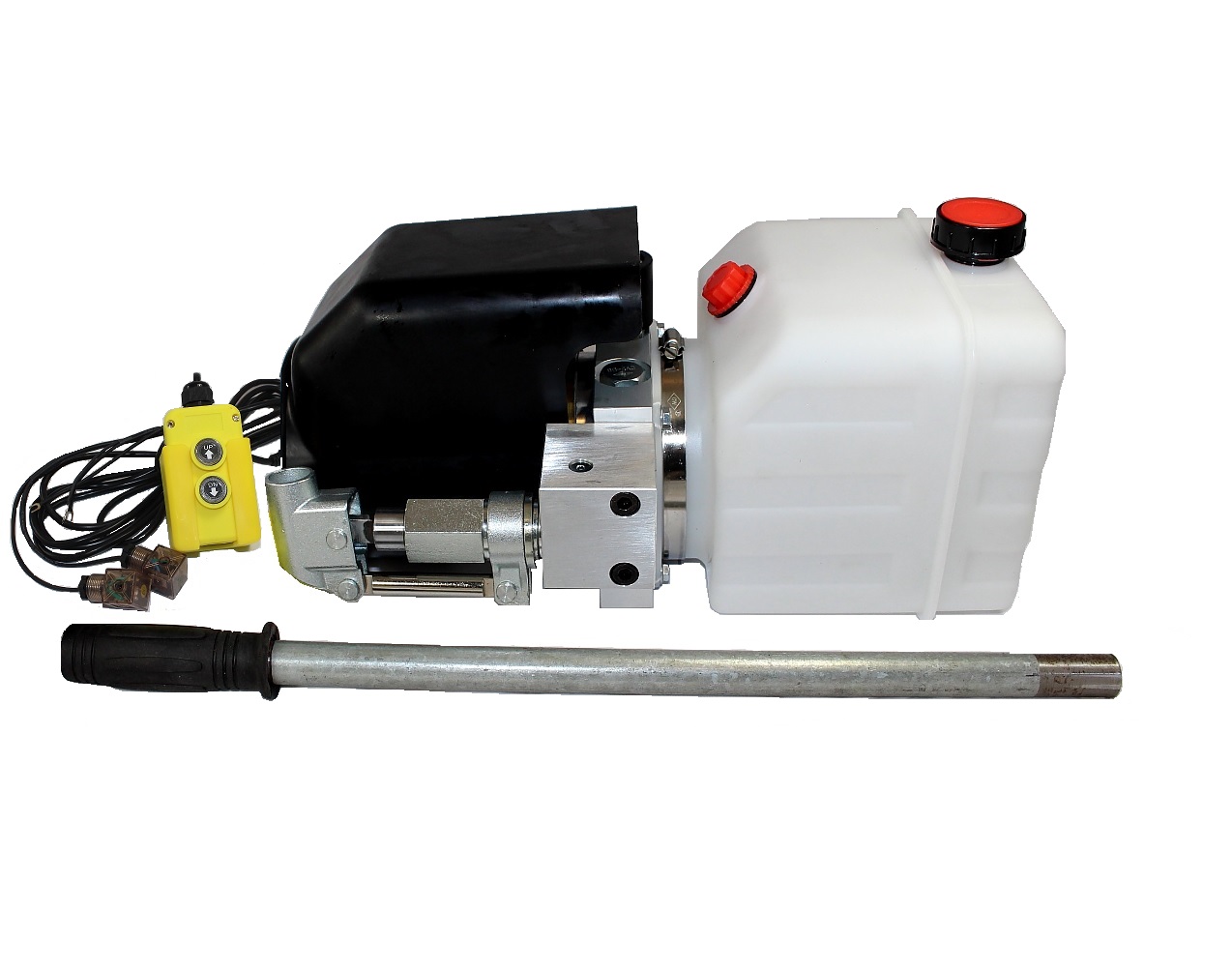

Flowfit 12V DC Single Acting Hydraulic Power pack with 2.5L Tank, Back Up Hand Pump & Wireless Remote 1.6KW
ZZ016185
Flowfit 12V DC Single acting hydraulic tipper power pack, 2.5 litre reservoir & back up hand pump c/w with 2 button pendant. 5 l/min @ 160 bar with wireless remote. Require a steel tank instead of plastic? We offer these tanks as a single purchase items in 5litre and 8litre. Click Here for 5 Litre. Click here for 8 Litre. IP 54 Rated.
Product Features:
Customers who bought this product also bought these
Flowfit 12V DC Single Acting Hydraulic Power pack with 2.5L Tank, Back Up Hand Pump & Wireless Remote 1.6KW
Wireless remote control fully wired and tested plus a 2 button detachable pendant c/w 4 metres of cable. Wireless remote control has approximately 50 metre of range.
Power pack package to operate a single acting cylinder on any trailer or tipper application complete with detachable two button pendent.
12v dc power pack.
2.1cc/rev gear pump.
1.6kw 12v dc electric motor c/w relay and plastic motor cover.
2.5,4.5, 7, 8, 11, 13 or 18 Litre reservoir c/w drain plug.
Power pack complete with suction strainer, return oil conveyor and filler breather. Horizontal mounting
Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min.
Adjustable flow control for cylinder decent control.
12v dc let down valve, relief and P line check.
Port size 3/8 BSP.
2 Button detachable pendent on a 4 metre lead.
Suitable for all single acting applications.
The Flowfit 12VDC Single Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.
The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.
The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.
With many added features such as flow control on cylinder decent, detachable pendent
The pendant isn’t required when working with the wireless handset, but still sent as back up if ever the wireless handset fails.GENERAL DELIVERY INFORMATION
