Vinke Standard and Smooth Hose Builder

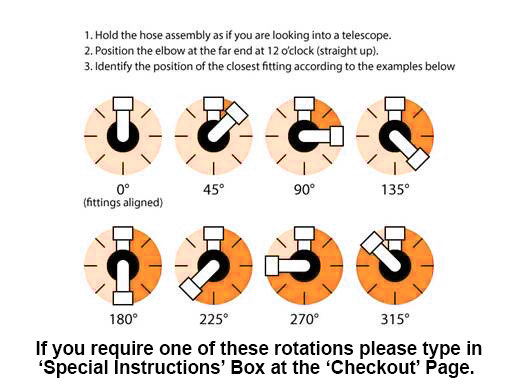

We can assemble your hose to suit your requirement. If you require a different angle of rotation on your hose assembly that isn’t available, or even a slightly different length. Please type it in the special instruction box within the check out page.
All hoses will be pre-assembled with fittings crimped on before we send it out. The hose length selected INCLUDES the fittings on either end of the hose.
PLEASE SEE TECHNICAL PDF FOR ALL DIMENSIONS, PRESSURE RATINGS AND BEND RADIUS.
VINCKE HYDRAULIC HOSES
Vincke is a brand of hydraulic hoses, certainly recognised as a product of high quality and an excellent performance.
More than 40 years manufacturing and distributing hydraulic hoses around the world. The use of first quality raw materials, together with the sophisticated technology and controls throughout the production process, ensure the highest quality Level.

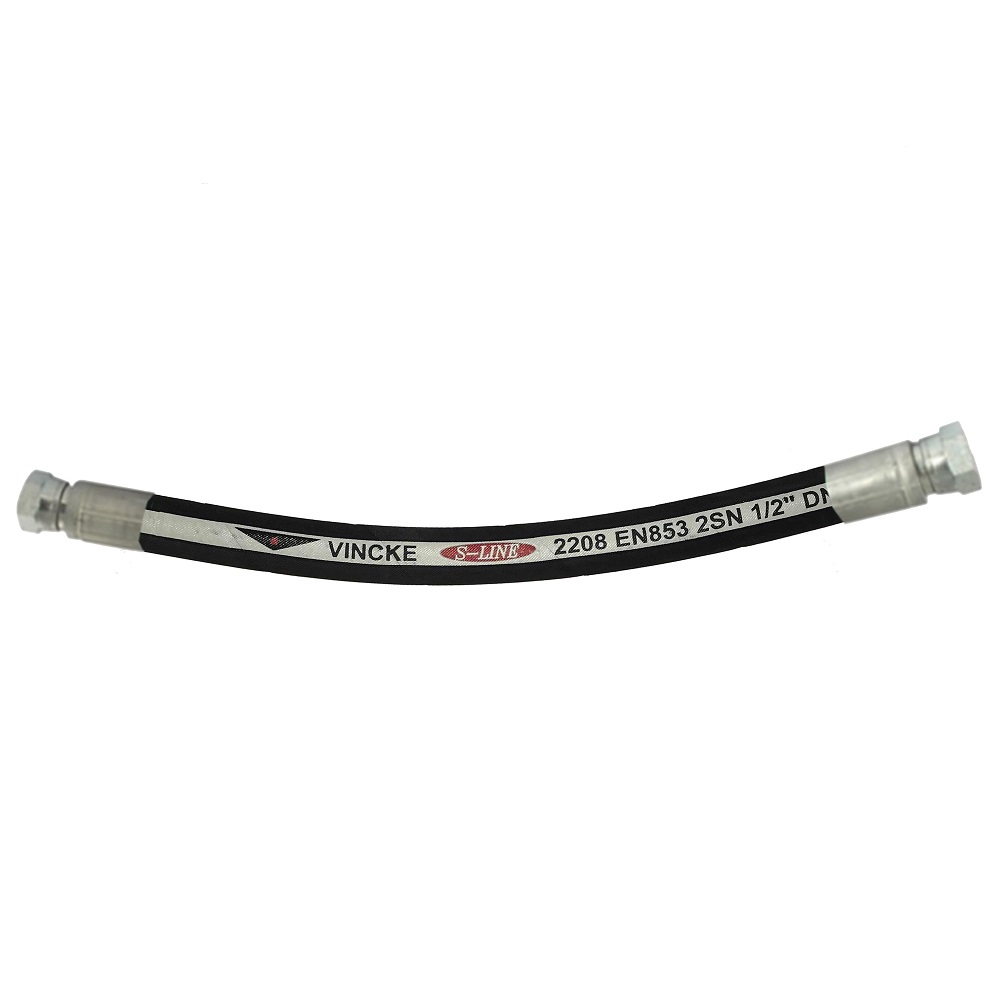

Standard Hose - Two Wire Braid Hydraulic Hose meets or exceeds DIN EN 853 2SN, SAE 100R2 AT and ISO 1436

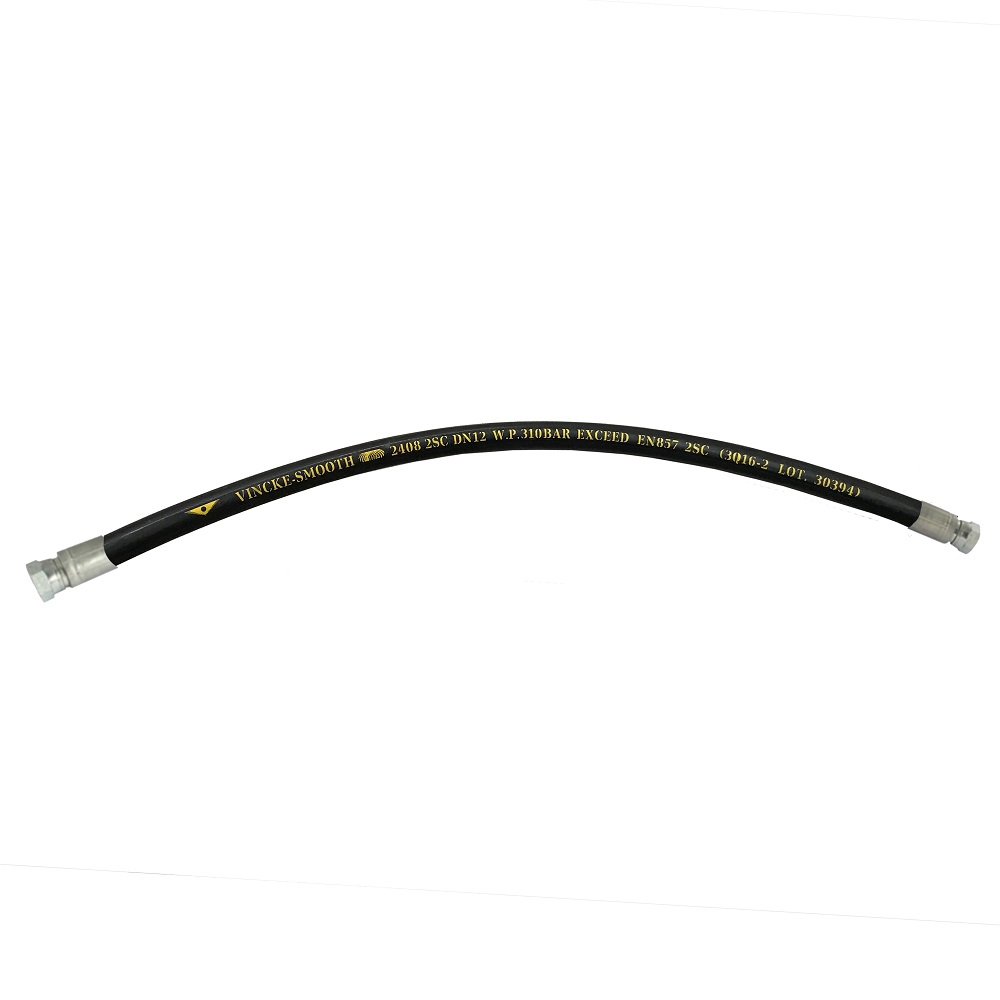

Smooth Hose – Two Wire braid hydraulic Hose meets or exceeds EN857 2SC
Construction
- Tube: seamless oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel wire braid
- Wrapped cover: weather, abrasion and ozone, resistant synthetic rubber
- Fluid resistance: Hydraulic fluids on mineral, vegetable and synthetic oil, water based fluids
- Temp range, continuous service: -40°C + 100°C Max (max 120°C intermittent)
Product Structure
- Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber
- Provides high pressure resistance and superior impulse resistance.
- Provides superior kink resistance and fatigue resistance.
- Provides longer service life.
Storage of hydraulic hoses
- Store cool, dry, away from dust and protect from direct sunshine and UV radiation.
- Shield from nearby heat sources. Do not allow hoses to come into contact with materials that could damage them.
- Maximum storage period in accordance with DIN 20066 recommendations: 4 years for hose material and 2 years for hose lines. So, Max. 6 years.
