Three Phase 400v Electric Motor, 2.2Kw 4 pole 1450rpm with flange and foot mount IE3
2.243TECAB35-IE3

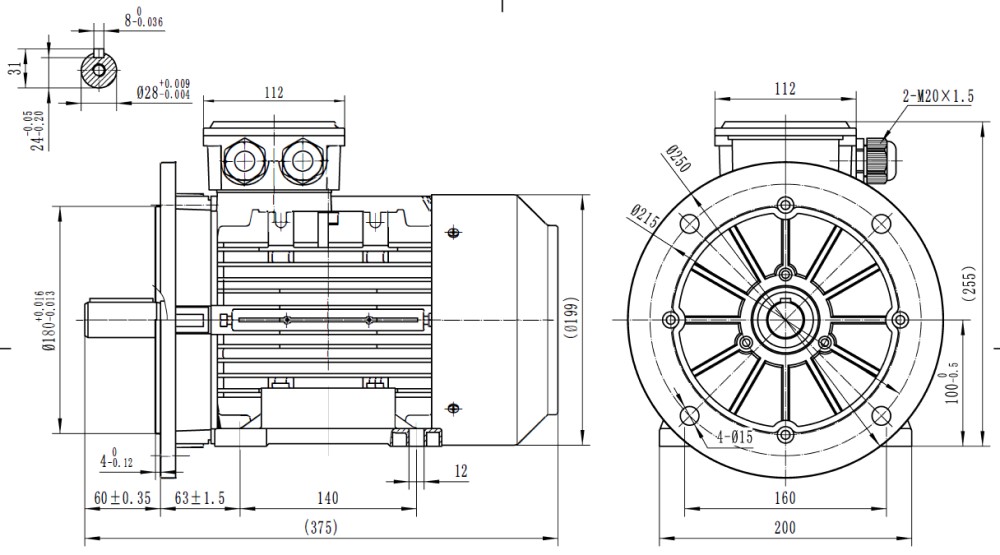

2.2kw Three phase 400v/50Hz 4 pole 1450rpm electric motor with B35 - Flange and Foot mount, 250mm DIA 28mm shaft D100. Suitable for applications where torque requirements are 1.8-2.5 times F.L.T.
Product Features:
Customers who bought this product also bought these
Three Phase 400v Electric Motor, 2.2Kw 4 pole 1450rpm with flange and foot mount IE3
THREE-PHASE 415V
TECA series Aluminium Housing 3 Phase Multi-mount motors up to 355 frame, utilising new automated production technology. The motors are manufactured to IEC standard.
Motors are: Easily maintained, light weight with high performance and low noise levels. The multi-mount design offers both O.E.M and stockist greater flexibility where terminal box position is important.
Note – Motors up to and including 9.2Kw are Aluminium housings. 11Kw upwards are Cast Iron Housing.
Series Three-Phase Induction Motors Cast Iron Housing
Multi-mount from 80 to 355 frame
• Frame size H63-355
• Power 0.12~39.2Kw
• Synchronous speed 3000; 1450; 1000; 750RPM
• Voltage 230/400V; 400/690V
• Frequency 50Hz, 60Hz
• Protection class IP55
• Insulation class F
• Ambi temperature -30~+40°C
• Altitude above sea level < 1000m
