Hydraulic 90° Rotating Coupling, GG 90° 3/4"
G1030
Hydraulic 90° Rotating Coupling, GG 90° 3/4", Max Flow 100 L/min, Max Rotation Pressure 150 Bar, Max Pressure Bar 300, Max Rotation Speed TURNS/MIN 120
Product Features:
Customers who bought this product also bought these
Oleodinamica Marchesini Hydraulic 90 Degree Rotating Coupling, GG 90° 3/4"
| CODE | TYPE | MAX FLOW L/MIN |
WORKING ROTATION PRESSURE BAR |
MAX PRESSURE BAR |
P BSP | L (MM) |
L1 (MM) |
L2 (MM) |
L3 (MM) |
HEX (MM) |
ØD (MM) |
WEIGHT (KG) |
| G0990 | GG 90° 1/4” | 25 | 200 | 400 | 1/4" | 50 | 69 | 11 | 11 | 19 | 34 | 0,312 |
| G1010 | GG 90° 3/8 | 35 | 200 | 400 | 3/8" | 54 | 76 | 14 | 13 | 24 | 38 | 0,418 |
| G1020 | GG 90°1/2” | 60 | 150 | 300 | 1/2" | 63 | 87 | 15 | 14 | 27 | 40 | 0,522 |
| G1030 | GG 90° 3/4” | 100 | 150 | 300 | 3/4" | 74 | 104 | 19 | 19,5 | 34 | 54,5 | 0,898 |
| G1040 | GG 90° 1” | 180 | 100 | 300 | 1" | 87 | 119 | 21 | 24 | 41 | 60 | 1,430 |
| G1042 | GG 90° 1” 1/4 | 270 | 100 | 300 | 1" 1/4 | 84 | 199,5 | 52 | 82 | 50 | 63 | 1,746 |
| G1043 | GG 90° 1” 1/2 | 350 | 80 | 300 | 1" 1/2 | 102 | 140 | 62 | 101 | 55 | 77 | 3,070 |
| G1044 | GG 90° 2” | 700 | 50 | 250 | 2" | 107 | 151 | 64 | 107 | 65 | 84 | 3,300 |
USE AND OPERATION:
These valves are mounted between the end of a flexible hose and a fixed component to compensate hose’s rotations and torsions and to prevent its damaging. They are not suitable for fast and continuous rotations. They are used in every production field where systems have flexible moving hose. 90°mounting.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Leakage control: Low friction seals.
CONNECTIONS:

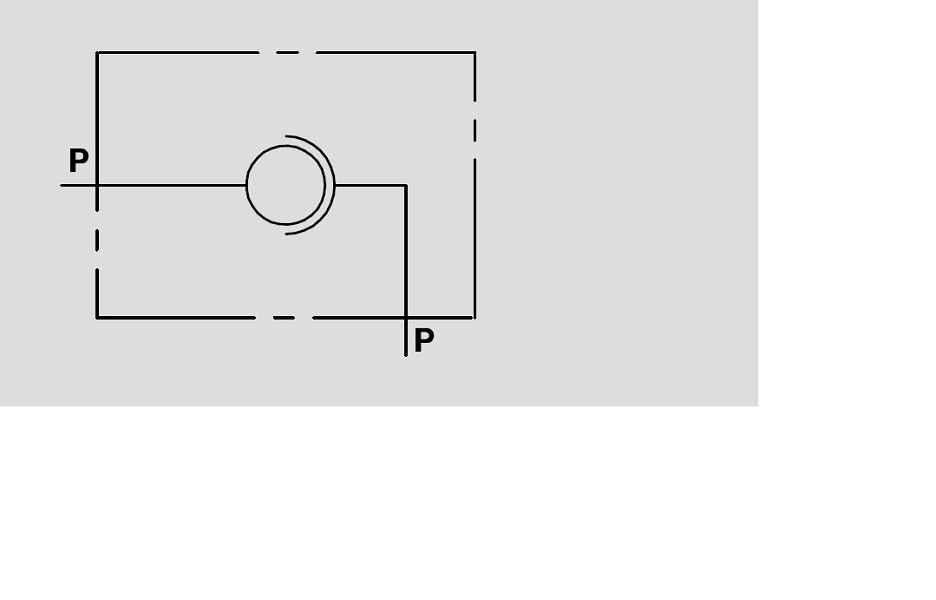

Connect ports P.
ON REQUEST:
NPT thread (code GN… instead of G...example: GG 90° ¼” NPT code = GN0990)
Stainless Steel body (Code GX... instead of G...
example: GG 90° 1⁄4” Stainless Steel code = GX0990)
