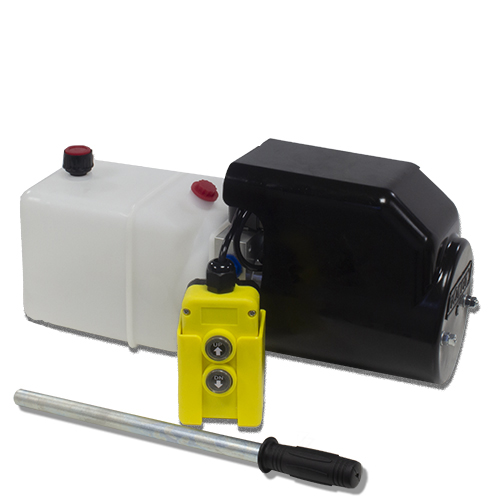

Flowfit 48V DC Single Acting Hydraulic Power pack with 1.5L Tank & Back Up Hand Pump 1.6KW
ZZ017564
Flowfit 48V DC Single acting hydraulic tipper power pack, 1.5 litre reservoir & back up hand pump c/w with 2 button pendant. 5 l/min @160 bar. Require a steel tank instead of plastic? We offer these tanks as a single purchase items in 5litre and 8litre. Click Here for 5 Litre. Click here for 8 Litre. IP 54 Rated.
Product Features:
Customers who bought this product also bought these
Flowfit 48V DC Single Acting Hydraulic Power pack with 1.5L Tank & Back Up Hand Pump 1.6KW
Flowfit 48V DC Single acting hydraulic tipper powerpack, 2.5,4.5, 7, 8, 11, 13 or 18 litre reservoir c/w with 2 button pendent. 5l/min @160 bar. Hydraulic Power Unit Package to operate a single acting cylinder on any trailer or tipper application complete with detachable two button pendent.
48v dc powerunit.
2.1cc/rev gear pump.
1.6kw 48vdc electric motor c/w relay and plastic motor cover.
1.5, 2.5,4.5, 7, 8, 11, 13 or 18 Litre reservoir c/w drain plug.
Powerpack complete with suction strainer, return oil conveyor and filler breather.
Horizontal mounting Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min. Adjustable flow control for cylinder decent control.
12v dc let down valve, relief and P line check. Port size 3/8 BSP.
2 Button detachable pendent on a 4 metre lead.
Suitable for all single acting applications.
The Flowfit 12VDC Single Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.
The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.
The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.
**2.5L Image Used**
