GL Double Acting 20cc Hydraulic Hand Pump with 2 Litre Tank, Double Acting Valve and Hand Lever for Double Acting Cylinder (with Bellows)
CHPTDSE20/2S
GL DOUBLE ACTING 20CC HYDRAULIC HAND PUMP WITH 2 LITRE TANK, DOUBLE ACTING VALVE AND HAND LEVER FOR DOUBLE ACTING CYLINDER. HAND LEVER INCLUDED. BELLOWS INCLUDED.
Product Features:
Customers who bought this product also bought these
GL Double Acting 20cc Hydraulic Hand Pump with 2 Litre Tank, Double Acting Valve and Hand Lever for Double Acting Cylinder (with Bellows)
Please note all Hand pumps are not designed to load hold or hold pressure for extended period of time unless supplied with PO check valves, See technical PDF.
All hand pumps with PO checks built in must have a minimum of 50 bar load pressure to enable them to seat correctly. Any applications where load or pressure holding is required please contact our Technical sales team for more information/advice.
It is advisable when choosing a pump that it requires no more effort than 25 daN, you will of course need to know the max working pressure for your application. The graph showing the effort required using a 600mm lever, you could decrease the effort involved by using a longer lever to help with this, should you require a higher displacement working at higher pressures. Our Hand pumps can produce the stated pressure, it is just that the effort required increases, the line across the effort graph is just the optimum advised load on the lever.
Specifications
· Maximum Pressure: 200 Bar
· Temperature: -30°C To +90?deg;C
· Hydraulic Mineral Oil
· 3/8” BSP Ports
· 20cc Displacement per Stroke
Materials
· Body In Cast Iron
· Steel Tanks (available in 2, 4, 6 and 8 litre capacity)
Seals
· Rod: Compact Polyurethane Lip Seal + Polyurethane Wiper Seal
Protection
· Pump Is Completely Protected Against Corrosion
· Body: Green Painted Finish
· Screws: Zinc Plated
· Tank: Painted Green
Technical Information On PDF
· Warranty: See Our Standard Terms Of Sale
Advantages
· Pump And Tank Fully Protected Against Corrosion;
· Finished Product Ready To Mount;
· The Pump Can Be Oriented On The Tank As Required (3 Screws)
· Can Be Mounted Vertically Or Horizontally;

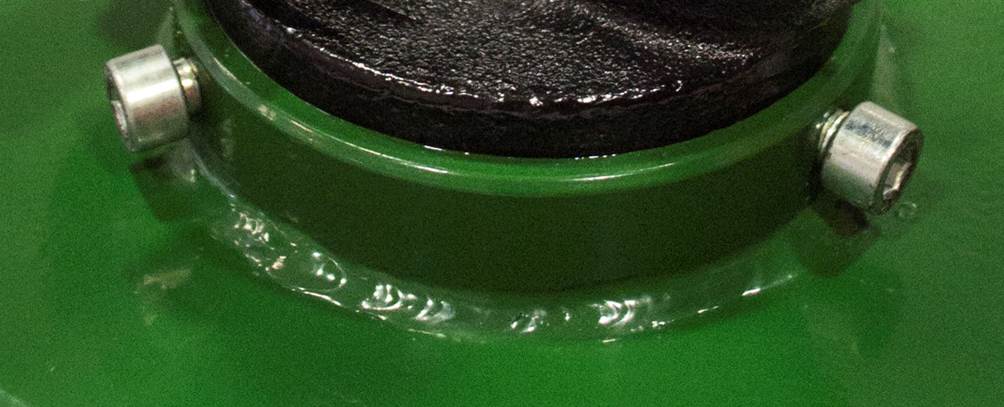

· There Is A Weld Ring To Fix Your Pump To Your Tank.
· Bellows Are Available Upon Request.
All standard Hand pumps are suitable for general outdoor usage, for some applications where the environment exceed the standard performance characteristics laid down, other precautions should be taken to protect the product during storage and or operation i.e. special painting can be applied where necessary. And general maintenance may need to be carried out at shorter intervals to ensure the longevity of the Product.
Environmental conditions for storage and operation
Ambient Temperature (Storage) - From +5°C To +45°C
Ambient Temperature (operation) - From +20°C To +80°C
Humidity (Without Condensation) - From 30% To 95%
Lonizing / Non Ionizing Radiation - Not support direct action
Environments at risk of explosion - Use of product forbidden
Hydraulic Fluid
Type - Mineral ISO 6743/4
Advised Viscosity - ISO VG 32
Advised Filtration - From 30 µ To 80 µ
