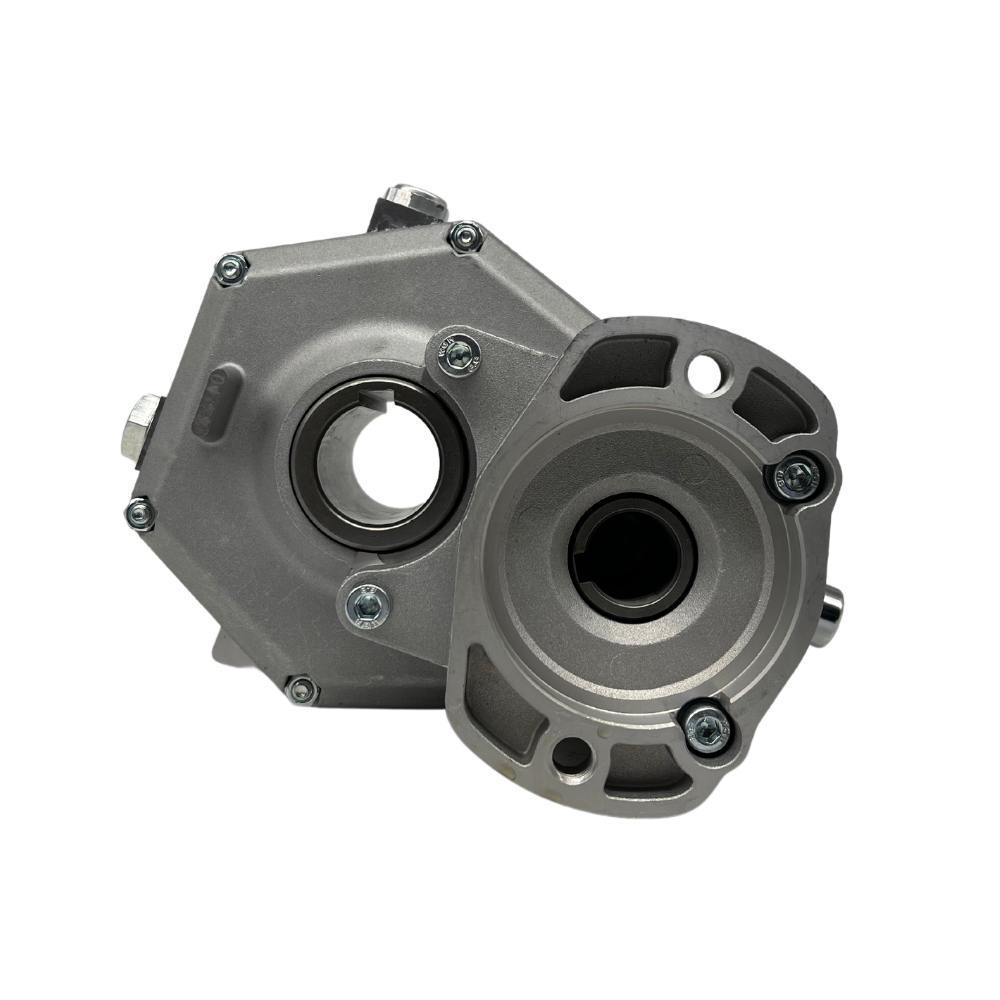

Flowfit Reduction Gearbox Group 2 10KW SAE A 2Bolt Mount 25mm 1:2 35mm Female Output Shaft
KR60016-2AS
The Speed Reduction Gearboxes are used for installing hydraulic motors onto self propelled farm machinery, earth moving machines, marine machines and horse walking applications.
Product Features:
Customers who bought this product also bought these
Flowfit Reduction Gearbox Group 2 10KW SAE A 2Bolt Mount 25mm 1:2 35mm Female Output Shaft
HYDRAULIC SERIES 600 SPEED REDUCTION GEARBOX GROUP 2 SAE A dia.25
Part Number: KR60016-2AS
Ratio: 1:2
The Speed Reduction Gearboxes are used for installing hydraulic motors onto self propelled farm machinery, earth moving machines, marine machines and horse walking applications.
The reduced output speed is 200 rpm therefore the working speed of the hydraulic motors is top be adjusted accordingly, provided that the input speed does not exceed 3000 rpm.
Gearboxes are made of aluminium and cast iron construction with very high mechanical resistance.
Gears
Manufactured in compliance with ISO/DIN 3990-80 standards.
Made in steel UNI, involute gears are shaved and case hardened.
Shafts
Case hardened made in steel and key-coupled with gears.
Torques
Torques mentioned in our technical charts for speed reduction gearboxes refer to continuous duty cycles.
Torques under intermittent duty cycles can be increased by 20%
Lubrication
SAE 90 gear oil must be put in the speed reduction gearbox prior to use. Please note we do not supply the gear oil and will not accept responsibility for customers not doing putting oil in.
Change the oil after the first 100 hours and then every 12 months or 1500 hours which ever falls first.
Maintenance
Please check the oil level via the special oil window every 50 hours.
Working temperatures should not exceed 120 degrees Celsius under continuous duty cycle.
Specify the correct speed reduction gearbox.
Please check with the Technical Sales Office if you are not sure which speed reduction gearbox to use.
