Hydraulic Steering Units
Hydraulic Steering Unit, Open Center, Non-Reaction, 50CC, With Relief & Anti-Shock Valves
Hydraulic Steering Unit, Load Sensing, Non-Reaction, 315CC, Modular Mount, With Relief & Anti-Shock Valves
Hydraulic Steering Units Built for Powerful, Precise Control in Every Turn
The Hydraulic Steering Control Unit - often called an orbitrol or hydrostatic steering unit comprises a rotary valve and a rotary meter. It connects to the vehicle’s steering wheel via a steering column. When the steering wheel is turned, hydraulic oil from the system pump flows through the rotary valve and rotary meter to either port L or R, depending on the direction of the turn. The rotary meter regulates the oil flow to the steering cylinder in direct proportion to the angular rotation of the steering wheel.
Our hydraulic steering units are offered in four configurations: open-center non-reaction (ON), open-center reaction (OR), closed-center non-reaction (CN), and load-sensing (LS).
This system is primarily used in low-speed, heavy-duty vehicles, such as engineering machinery, forklifts, tractors, combine harvesters, and marine hydraulic rudders.
Key Advantages of the Hydraulic Steering Control Unit:
-
Cost-effective and reliable
-
No load feedback to the steering wheel, ensuring operator comfort
-
Manual operability even when the pump is not running
-
Low control torque for smooth, continuous operation
-
Customizable valves with various functions and pressure ratings, depending on system requirements
Technical Specifications & Downloads
Each product page includes downloadable technical specifications in PDF format for easy reference. Click on the product of your choice and navigate to the download tab.
Steering Unit Alternatives & Equivalents
Find the perfect match: our steering units are cross-compatible with major brand models, built for easy interchangeability, trusted durability, and at a much more competitive price.

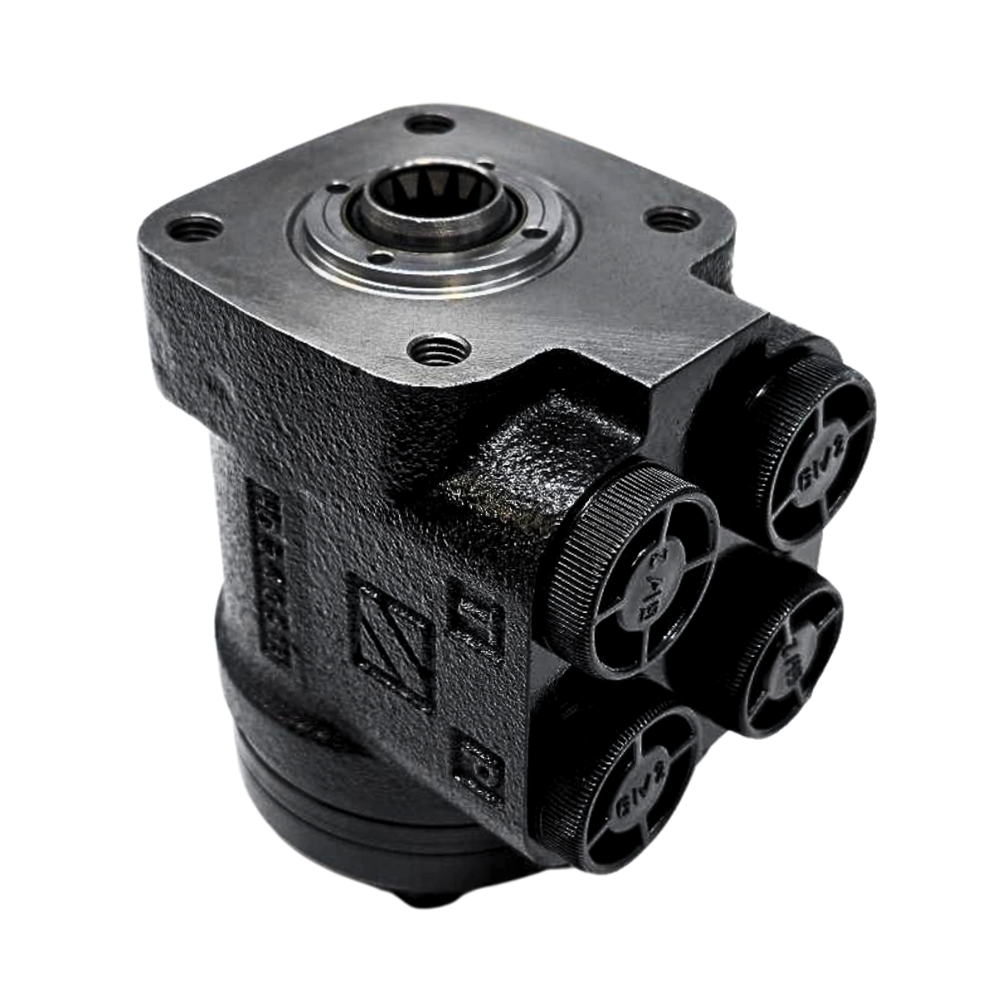

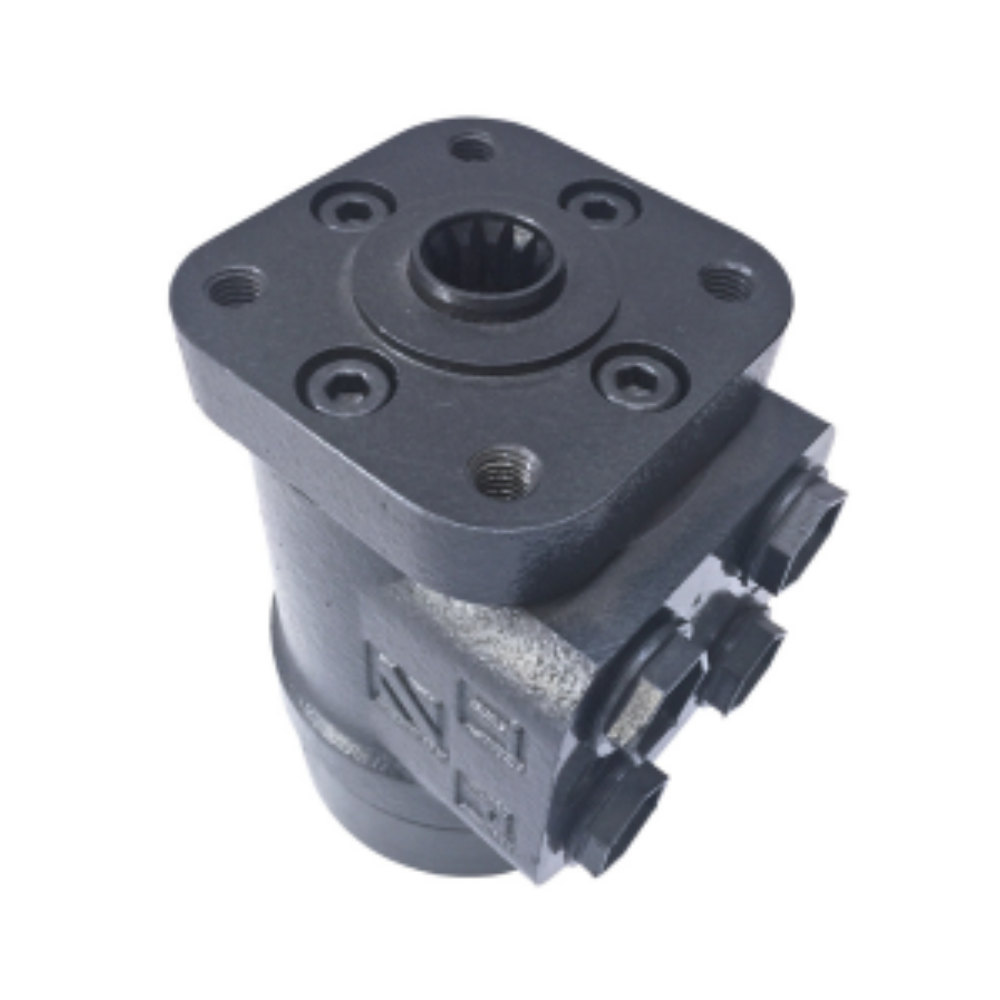

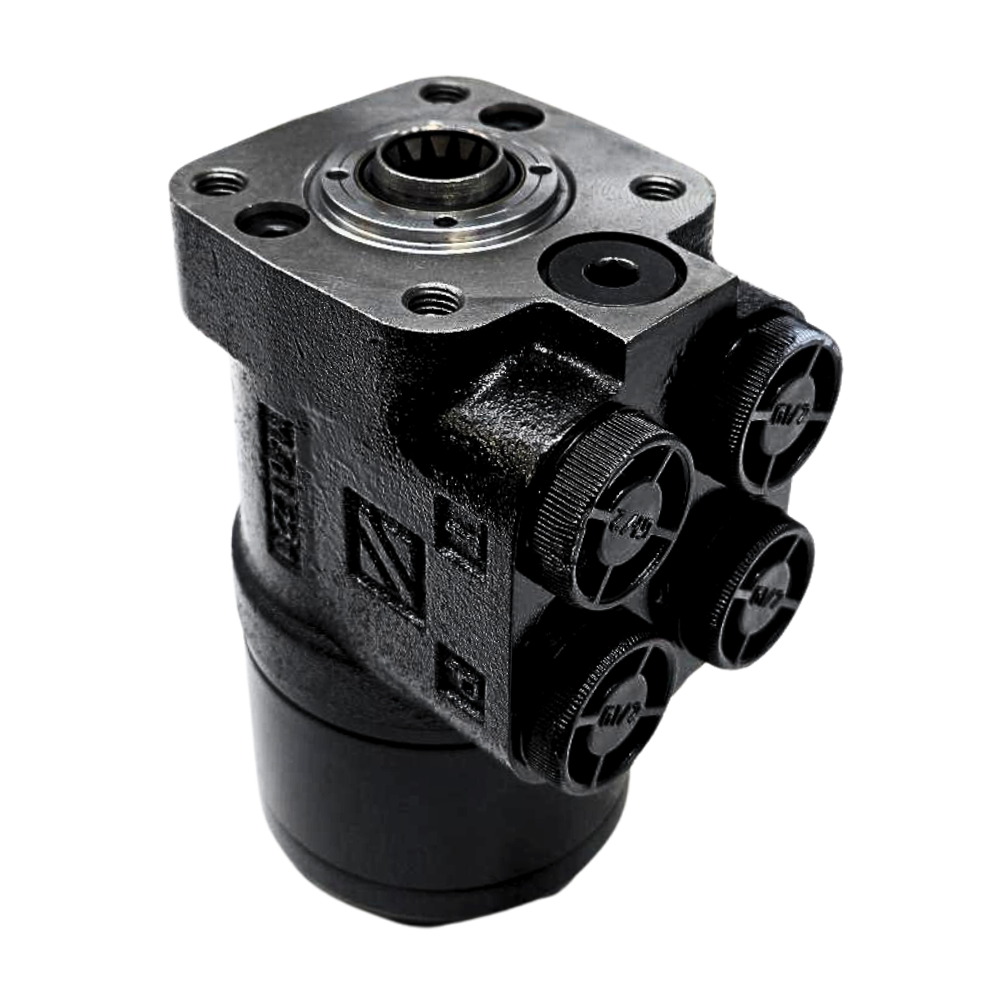

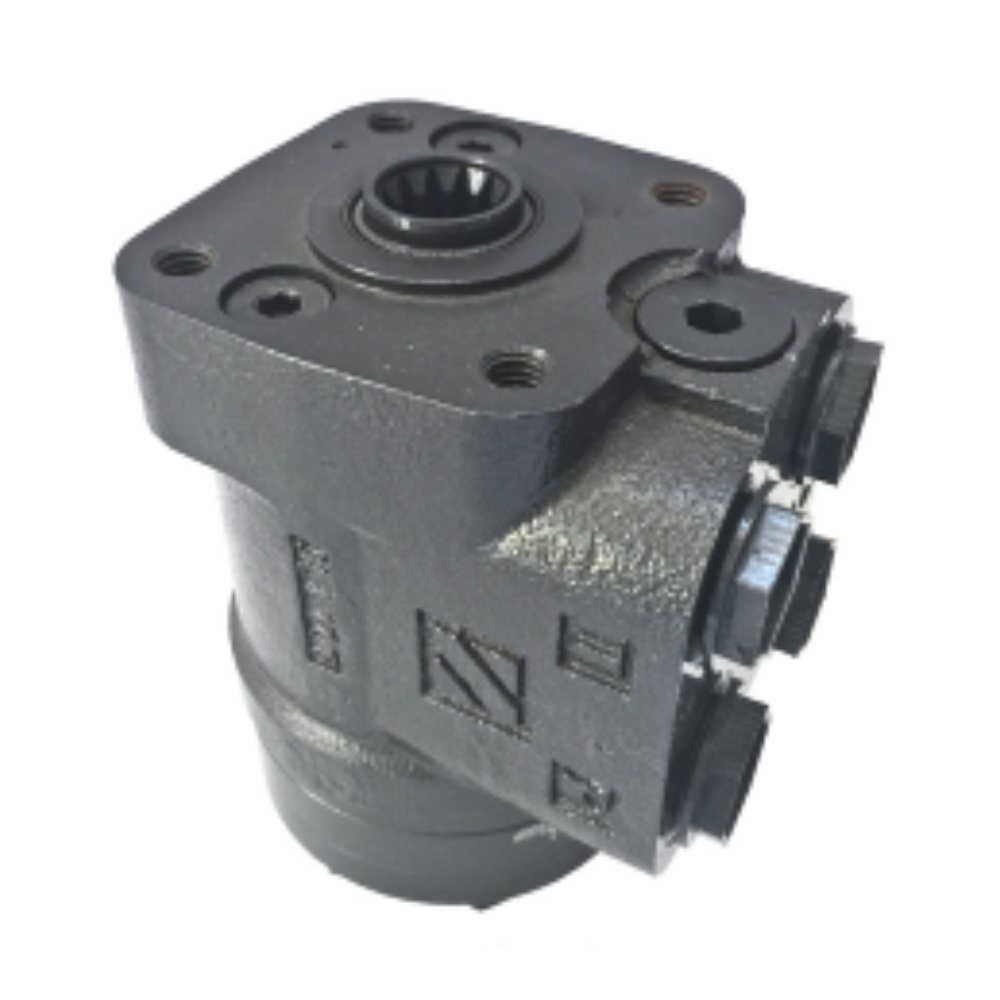

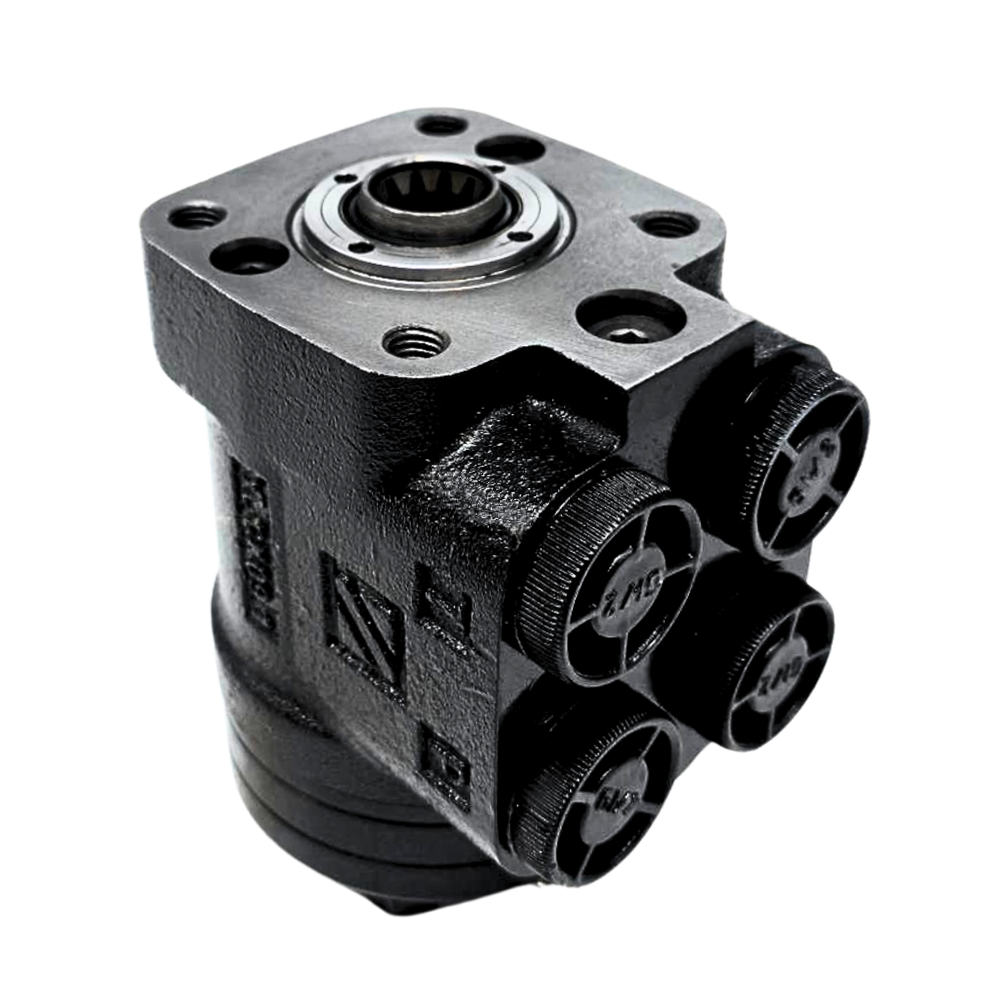

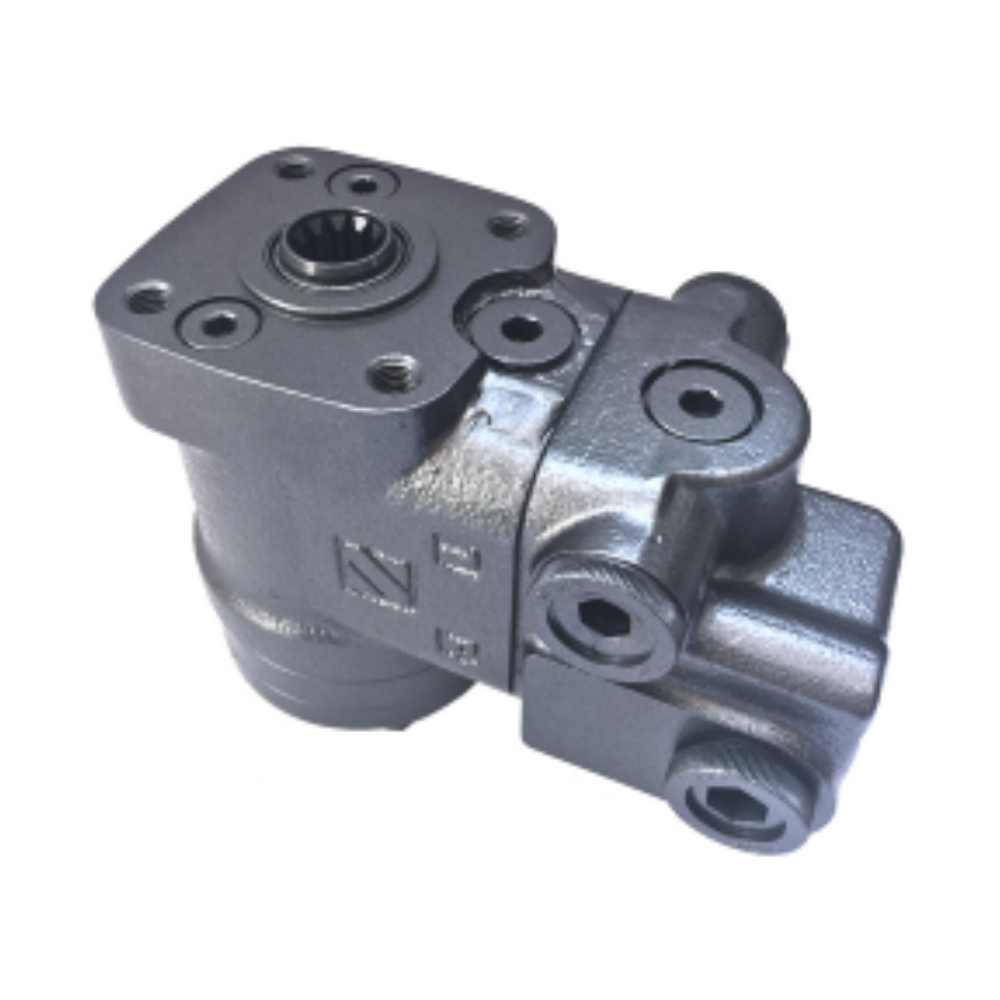

| BPB1 | BPB2 | BPB3 | BPB5 | BPBS1 | BPBS2 | BPBS5 | BPBS5T | VLSA | (D) YXL | |
|---|---|---|---|---|---|---|---|---|---|---|
| DANFOSS | OSPB ON | OSPB OR | OSPB CN | OSPB LS (OLS) | OSPC ON | OSPC OR | OSPC LS (OLSA) | OSPC LS (OLS) | OLSA | OLS |
| M+S | HKU…/4 | HKU…/3 | HKU…/7 | HKU…/5T | HKUS…/4 | HKUS…/3 | HKUS…/5D | HKUS…/5DT | PRD (D) | PRT |
Order Your Hydraulic Steering Units Today!
With over 9,000 satisfied global customers, Flowfit has built a reputation for quality and reliability. We offer UK & Worldwide delivery, ensuring you receive the hydraulic products you need.
Want to dive deeper into how steering units work or how to choose the right one for your needs? Read our blog for in-depth guidance, care recommendations, and detailed product knowledge.
For more information, call 01584 876 033 or email sales@flowfitonline.com to speak with our expert team
