Why Gear Pump Connectors Matter: Boosting Efficiency and Reliability

What Is The Purpose Of Hydraulic Gear Pump Connectors?

Gear pump connectors are used to connect the pump to the system, ensuring proper fluid flow into and out of the pump. They also help maintain pressure, prevent leaks, and ensure the pump is securely attached to the system.

How Do I Choose The Right Connector For My Hydraulic Gear Pump?

The choice of connector depends on several factors, including the pump port size, the type of fluid being pumped, the system's pressure rating, and the need for flexibility. It's also important to consider the installation environment, such as whether it's for industrial, high-pressure, or food-grade applications, as well as the ease of maintenance or disassembly. Additionally, flow rate plays a critical role. It's essential to select the correct thread size relative to the pump's displacement to prevent cavitation and avoid restrictions on the outlet.

What Is PCD And Why Is It Important For Gear Pump Connectors?

PCD stands for Pitch Circle Diameter in the context of gear pump connectors. It refers to the diameter of the circle that passes through the centre of all the bolt holes on the flange of the connector. Essentially, it's the measurement of the circle formed by the centres of the holes that are used to secure the gear pump to the system.

Compatibility and Fit: The PCD ensures that connectors, such as circular connectors, can be properly aligned with other components, like mounting plates or machines. When the PCD is standardized, it ensures the connectors will fit securely in place, avoiding misalignment during installation.
Precise Alignment: For connectors to function optimally, they need to be correctly positioned to maintain proper electrical or mechanical contact. PCD helps to ensure this precise alignment, preventing issues like poor connectivity or stress on the connector.
Load Distribution: PCD helps in distributing mechanical loads evenly across all fasteners. In connectors, especially heavy-duty ones, this ensures durability and reduces the risk of failure due to uneven stress on mounting points.
Standardization: Knowing the PCD of a connector ensures it will be compatible with standardized mounting systems and hardware. This makes it easier to interchange components, maintain equipment, or design new systems.

Straight vs. Elbow Flange Gear Pump Connectors: What’s the Difference?

Straight Flange Connectors

Provide a direct, inline connection between the pump and hydraulic hoses or pipes.
Used when space is not a constraint and a straight fluid path is preferred.
Common in high-flow, low-restriction applications.

Elbow Flange Connectors (90°)

Used when space is limited or when a change in direction is needed.
Helps in reducing hose bending, preventing wear and fatigue.
Available in 90-degree angle for flexibility in system design.

Which One to Choose?

Use straight connectors for direct, high-flow connections.
Use elbow connectors to avoid excessive hose bending and improve routing in tight spaces.

How Can I Troubleshoot A Leaking Hydraulic Gear Pump Connector?

If you notice a leak, first check:

If the connector is tightened properly.
If the seal (O-ring or gasket) is damaged or worn out.
For signs of misalignment or damage to the threads or connection points.
If the connector material is suitable for the type of hydraulic fluid used.

Can These Gear Pump Connectors Be Used With Other Hydraulic Components?

Pump connections are primarily used for pumps, but they can also be found in other hydraulic applications. In a hydraulic system, connectors serve to link various components, ensuring efficient fluid flow and pressure management. While they are crucial for pumps, these connectors are also used in:

Hydraulic Cylinders: Connectors are used to attach hydraulic cylinders to the rest of the system, directing fluid to and from the cylinders to create motion.
Hydraulic Motors: These connectors are used to connect pumps to hydraulic motors, which convert hydraulic energy into mechanical motion.
Directional Control Valves: Directional control valves direct the flow of hydraulic fluid to specific parts of the system. Connectors are used to connect these valves to the manifold, ensuring fluid is routed to the correct direction, allowing precise control over actuators or hydraulic motors.
Valves: Hydraulic valves regulate fluid flow and pressure within the system. Connectors link them to pumps, cylinders, and hoses.
Filters: Hydraulic filters ensure fluid cleanliness by filtering out contaminants. Connectors are used to attach them to the fluid lines.
Accumulators: These store hydraulic energy, and connectors are used to integrate them into the hydraulic circuit.
Tanks and Reservoirs: They connect hydraulic pumps to fluid reservoirs, allowing the system to draw and return fluid for continuous operation.
Hoses and Piping: Connectors link pumps to hoses or rigid pipes, carrying hydraulic fluid to and from various parts of the system.
Coolers: Hydraulic connectors are used to connect the hydraulic pump to heat exchangers or coolers, ensuring the fluid remains at an optimal temperature for system efficiency.
Manifolds: Hydraulic manifolds are often used to distribute fluid to multiple hydraulic circuits. Connectors are used to link the pump to the manifold, ensuring that the hydraulic fluid flows properly to various system components.

Why Buy Gear Pump Connectors from Flowfit?

Premium Quality: TOR-MEC's connectors are made from top-grade materials, ensuring long-lasting durability and exceptional performance in even the most demanding applications.
Comprehensive Range: We provide a diverse range of gear pump connectors, including straight connectors, 90-degree elbows, and SAE flanges.
Free UK Shipping: We offer free UK shipping on orders over £250, making it easier and more affordable to get the hydraulic components you need delivered straight to your door.
Global Shipping: Flowfit proudly serves customers across the UK and worldwide, ensuring that top-quality hydraulic products are available no matter where you are.

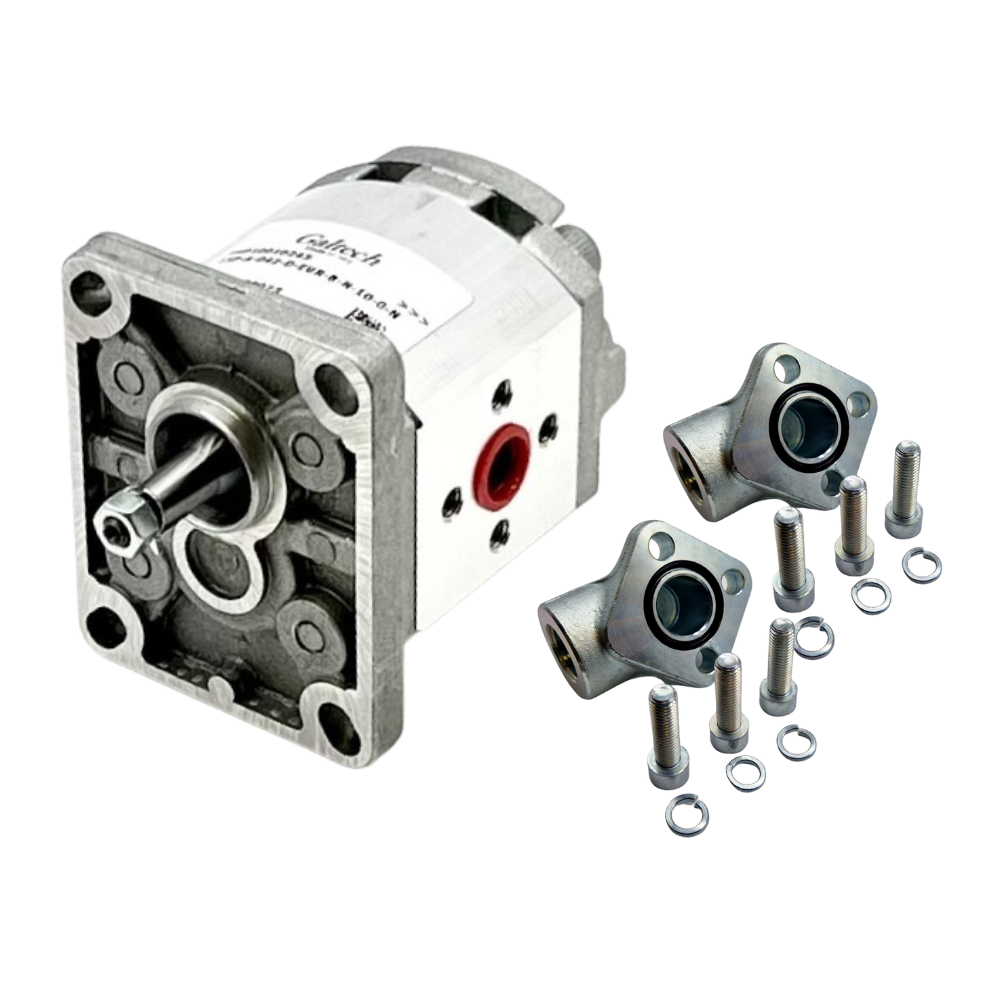

Reliable Connections for Optimal Performance – Flowfit Gear Pump Flange Connector Kits

At Flowfit, you can find the elbow connectors you need, with our pump connector kits supplied with your pump selection. We have provided the most common 90-degree connectors that we believe best match each pump port size. These connectors are available in both our brand and the Walvoil brand.

Browse our selection of gear pump connectors and find the ideal hydraulic solution for your needs. Our team of hydraulic specialists are ready to assist you with expert advice and help you find the best products for your equipment.

For more information, get in touch with our team of hydraulic specialists today!
